Fuel Filler Pipe

WARNING: This page is about a different variant/trim than selected.

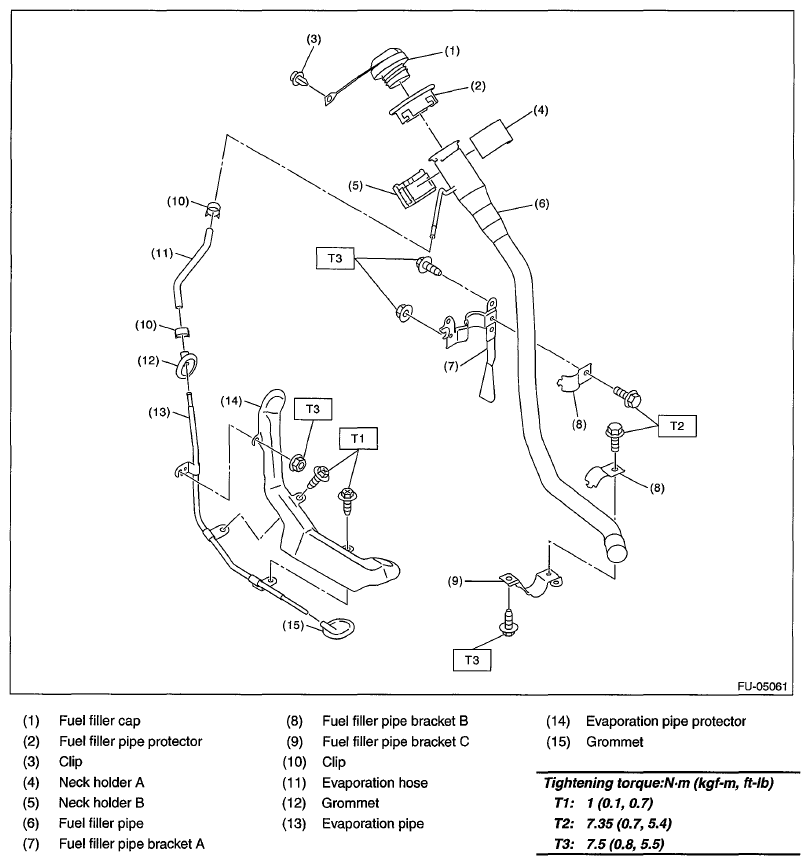

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1,0.7)

T2: 7.35 (0.7,5.4)

T3: 7.5 (0.8,5.5)
