LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    NOTE: Follow these procedures for removal of the collector cover.
    1. Lift up the rear side holding two positions (A).
    2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.

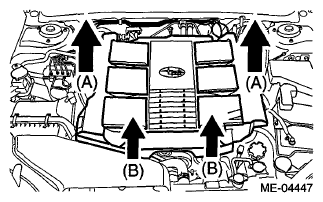

      Fig 1: Locating Front And Rear Side Holding Position
      G06651270Courtesy of SUBARU OF AMERICA, INC.
  2. Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
  3. Remove the battery. Ref. to REMOVAL , Battery.
  4. Open the fuel filler lid and remove the fuel filler cap.
  5. Remove the securing clips from the two locations on the fuel pipe protector LH.
    Fig 2: Locating Fuel Pipe Protector LH Clips
    G06651188Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the PCV hose and blow-by hose.
    Fig 3: Locating PCV Hose And Blow-By Hose
    G06651190Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel pipe protector LH.
    Fig 4: Locating Fuel Pipe Protector LH Bolts
    G06651195Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the connector from fuel injector.
  9. Remove the engine harness from the fuel injector pipe LH.
  10. Remove the bolt which holds fuel injector pipe onto cylinder head.
    Fig 5: Locating Engine Harness Of Fuel Injector Pipe LH
    G06651274Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the fuel injector while lifting up the fuel injector pipe.
