LH Side

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Use a new seal ring.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

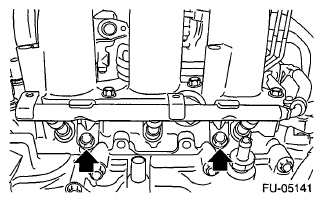

Fig 1: Locating Fuel Pipe Protector LH Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 2: Locating Fuel Pipe Protector LH Bolts

Courtesy of SUBARU OF AMERICA, INC.
