Crankshaft Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    NOTE: Follow these procedures for removal of the collector cover.
    1. Lift up the rear side holding two positions (A).
    2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.
      Fig 1: Locating Front And Rear Side Holding Position
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Remove the air intake boot assembly. Ref. to REMOVAL , Air Intake Boot.
  4. Remove the throttle body from the intake manifold.
    NOTE: Do not disconnect the inlet and outlet hoses of engine coolant.
  5. Remove the service hole plug.

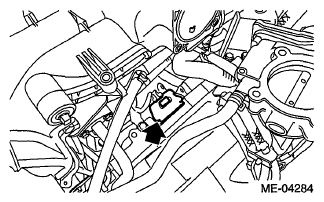

    Fig 2: Locating Service Hole Plug
    G06651232Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the crankshaft position sensor.
    Fig 3: Locating Crankshaft Position Sensor
    G05667579Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector from crankshaft position sensor.
