Knock Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

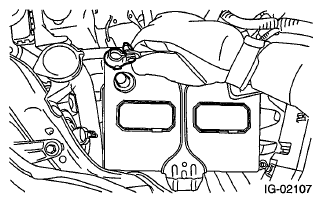

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. Ref. to REMOVAL , Intercooler.
Disconnect the connector from the knock sensor.

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the knock sensor from cylinder block.

Fig 3: Locating Knock Sensor From Cylinder Block Bolt
Courtesy of SUBARU OF AMERICA, INC.
