Section 6 (Fuel Injection System - Fuel Injection (Fuel Systems) (H4DOTC - 2.5L DOHC Turbo))
>>
General Description
>>
Components With Torque Specifications
>>
Crankshaft Position, Camshaft Position And Knock Sensors
Crankshaft Position, Camshaft Position And Knock Sensors
WARNING:
This page is about a different variant/trim than selected.

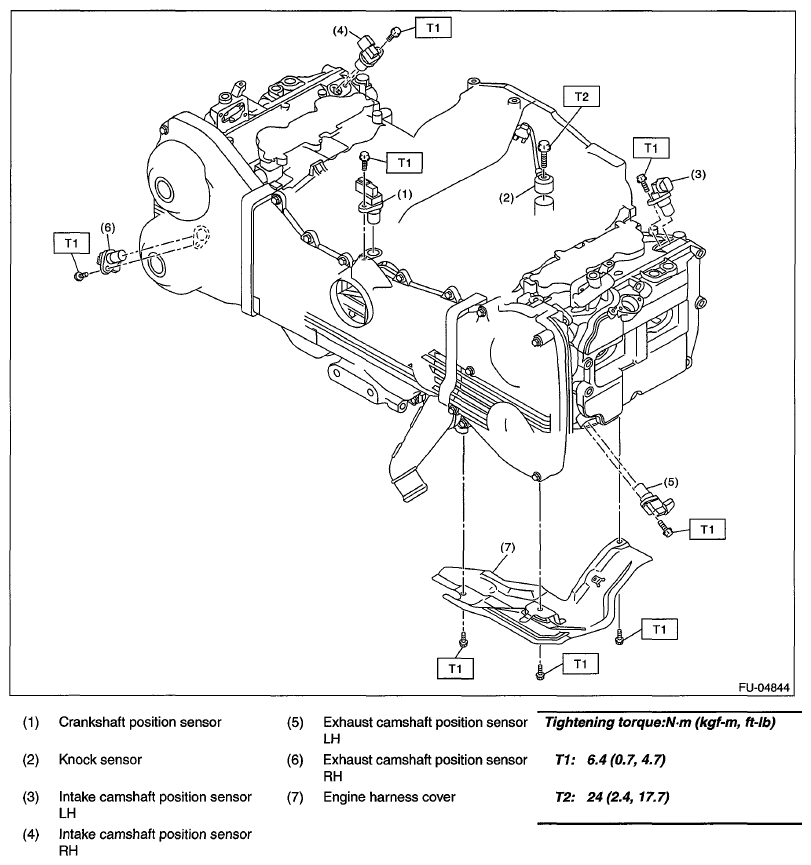

Fig 1: Exploded View Of Crankshaft Position, Camshaft Position And Knock Sensors With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
