Fuel Filler Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Open the fuel filler lid.
Insert the fuel filler pipe assembly into the rubber saucer from inside of the rear fender.
Install the fuel filler pipe assembly to the vehicle body and connect the evaporation hose (A) to the fuel filler pipe assembly.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Align the cutout on the fuel filler pipe protector and the protrusion of the neck holder and insert them all the way, and then turn the fuel filler pipe protector in the direction of the arrow until it is locked.

Fig 2: Identifying Filler Cap Turning Position
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A), PCV inlet hose (B) and circulate hose (C) to the spool or stopper, then attach the clamp or clip as shown in the figure.
Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 3: Locating Fuel Filler Hose, PCV Inlet Hose And Circulate Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Hose, Clamp And Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the rear sub frame. Ref. to INSTALLATION , Rear Sub Frame.
Install the rear mud guard RH. Ref. to INSTALLATION , Mud Guard.
Lower the vehicle.
Install the rear wheel RH.
Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the ground cable to battery.

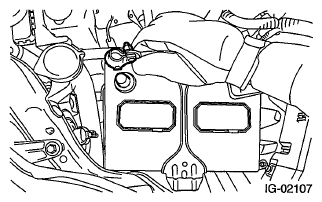

Fig 5: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
