Engine Coolant Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator. Ref. to REMOVAL , Generator.
Drain engine coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Disconnect the connector from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.

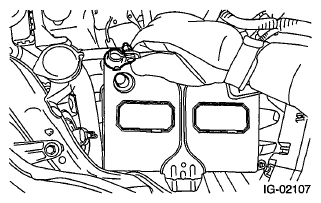

Fig 2: Locating Engine Coolant Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
