Intake Side

WARNING: This page is about a different variant/trim than selected.

Camshaft position sensor RH
1. Disconnect the ground cable from battery.

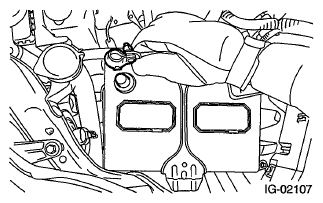

  Fig 1: Identifying Ground Cable And Battery
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connector from the camshaft position sensor RH, and remove the camshaft position sensor RH.

  Fig 2: Locating Camshaft Position Sensor RH Connector
  Courtesy of SUBARU OF AMERICA, INC.
Camshaft position sensor LH
1. Disconnect the ground cable from battery.

  Fig 3: Identifying Ground Cable And Battery
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the intake manifold. Ref. to REMOVAL , Intake Manifold.
3. Remove the camshaft position sensor LH.

  Fig 4: Locating Camshaft Position Sensor LH Bolt
  Courtesy of SUBARU OF AMERICA, INC.
