Section 5 (Engine Mechanical (H6DO - 3.6L DOHC)): V-belt: Inspection
WARNING: This page is about a different variant/trim than selected.
- Replace the V-belt, if cracks, fraying or wear is found.

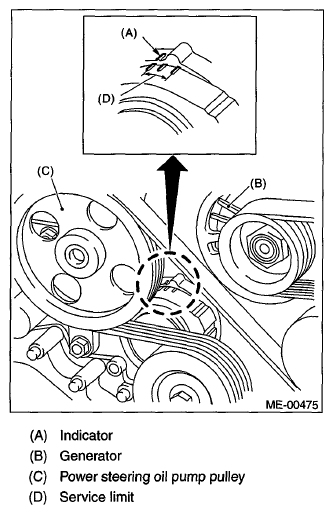

- Make sure that the V-belt automatic belt tension indicator (A) is within the range (D).
Courtesy of SUBARU OF AMERICA, INC.
