Section 5 (Engine Mechanical (H6DO - 3.6L DOHC))
>>
Timing Chain Assembly
>>
Location
Timing Chain Assembly: Location
WARNING:
This page is about a different variant/trim than selected.

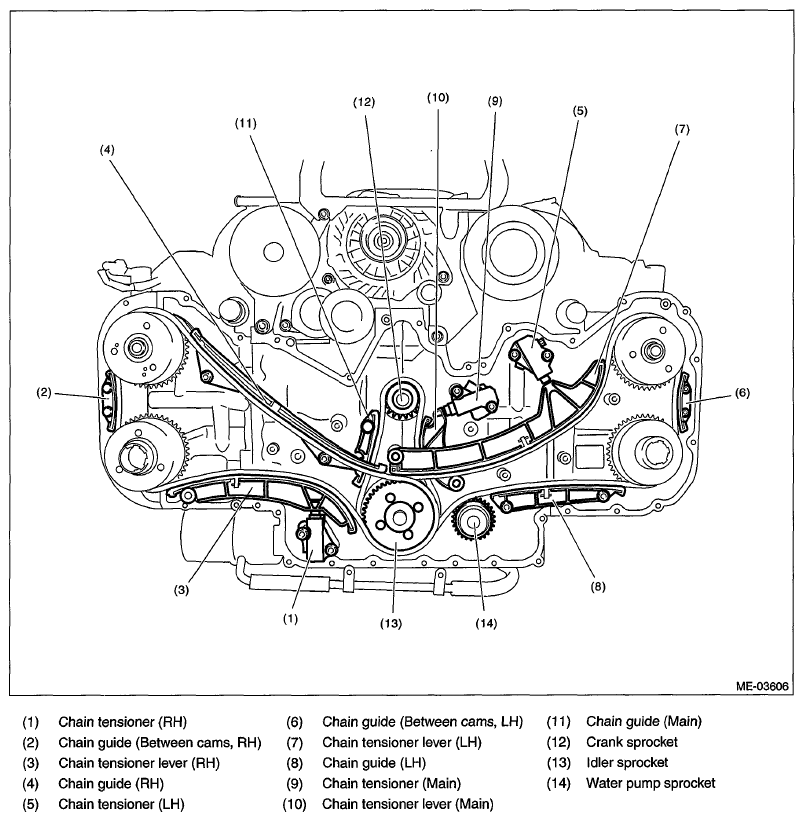

Fig 1: Identifying Timing Chain Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
