Section 5 (Engine Mechanical (H6DO - 3.6L DOHC))
>>
General Description
>>
Components With Torque Specifications
>>
Crankshaft And Piston
Crankshaft And Piston
WARNING:
This page is about a different variant/trim than selected.

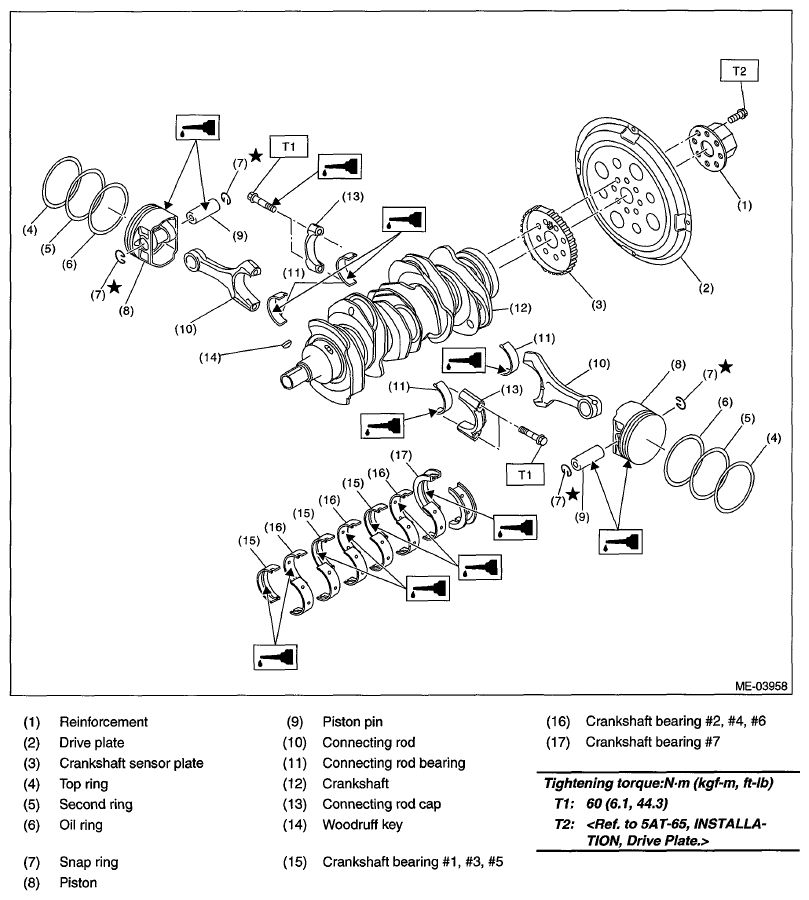

Fig 1: Exploded View Of Crankshaft And Piston With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
