Cylinder Block: Disassembly

WARNING: This page is about a different variant/trim than selected.

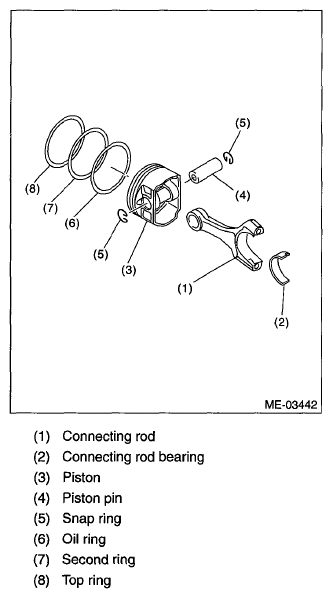

Fig 1: Disassembled View Of Piston And Connecting Rod
G06649928Courtesy of SUBARU OF AMERICA, INC.
NOTE: To prevent confusion of various parts, mark each part.
  1. Remove the connecting rod bearing.
  2. Remove the piston rings using piston ring expander.
  3. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in proper order, to prevent confusion.
  4. Remove the snap ring.
  5. Using snap ring pliers, remove the snap ring.
  6. Remove the piston pin from the piston.
  7. Separate the piston and connecting rod.
    NOTE: Mark the direction of front side to each connecting rod.
  8. Remove the plug and orifice from the cylinder block as necessary. Ref. to CYLINDER BLOCK , COMPONENT, General Description.
