Cylinder Block: Assembly

WARNING: This page is about a different variant/trim than selected.

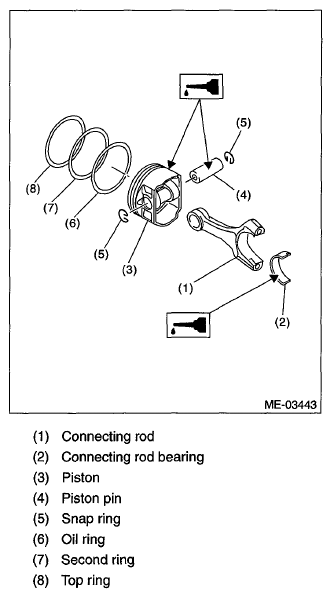

Fig 1: Assembled View Of Piston And Connecting Rod
G06649929Courtesy of SUBARU OF AMERICA, INC.
  1. Apply engine oil to the surface of the connecting rod bearing. Attach the connecting rod bearing to the connecting rod.
  2. Join the connecting rod and piston.
    NOTE: Position each connecting rod with the marked side facing forward.
  3. Apply engine oil to the piston pin, and attach the piston pin.
  4. Using snap ring pliers, attach the snap ring.
  5. Install the oil ring upper rail, expander and lower rail by hand.
  6. Install the second ring and top ring using piston ring expander.
