Work On The Vehicle

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

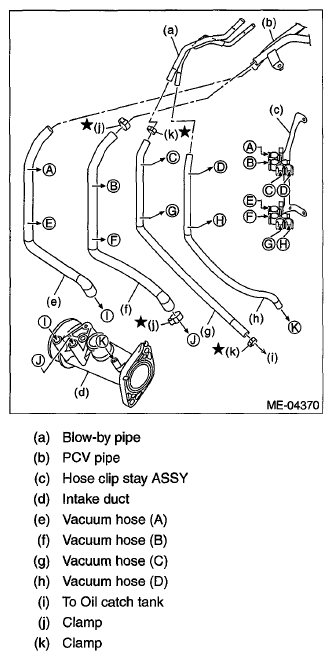

NOTE: Install the vacuum hose as shown in the figure.

Fig 1: Identifying Vacuum Hoses

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

Fig 2: Identifying Front Timing Belt Cover

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Locating Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 4: Identifying Intake Duct

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "STARTING/CHARGING SYSTEMS" for the tightening torque. Ref. to GENERATOR , COMPONENT, General Description.

Fig 5: Locating Power Steering Pump Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 6: Locating Intake Duct Clamp

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

Fig 7: Locating Stopper Rod

Courtesy of SUBARU OF AMERICA, INC.
