Section 4 (Engine Mechanical (H4DOTC - 2.5L DOHC Turbo))
>>
General Description
>>
Components With Torque Specifications
>>
Timing Belt
Timing Belt
WARNING:
This page is about a different variant/trim than selected.

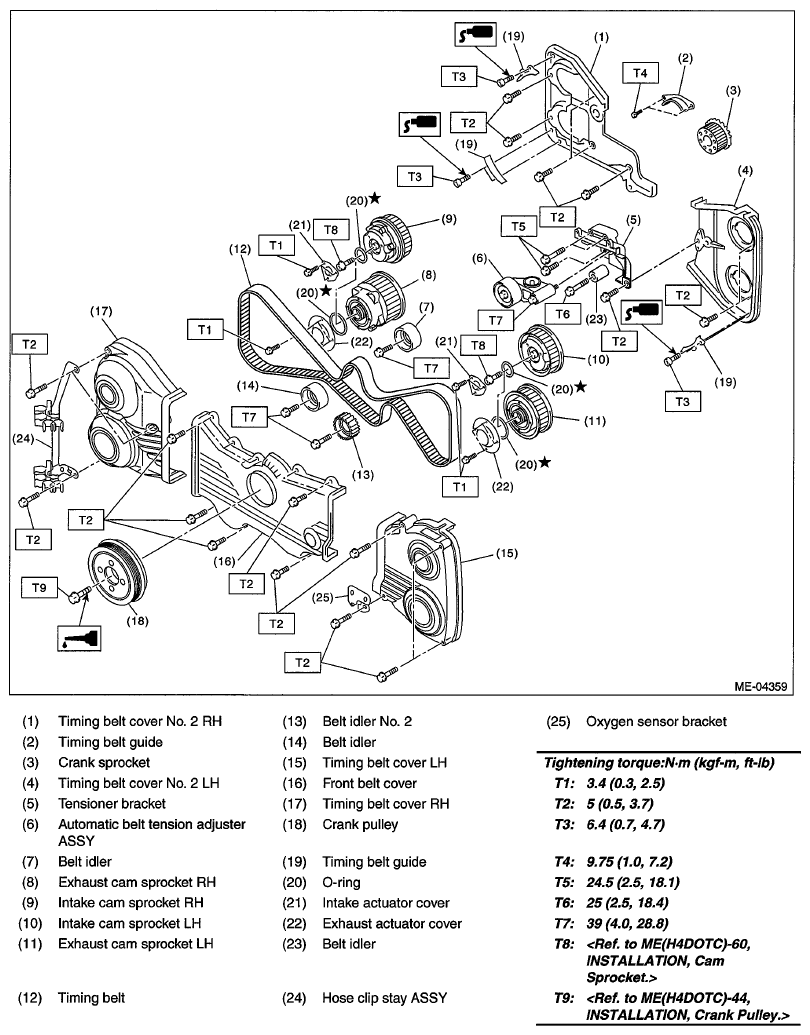

Fig 1: Timing Belt Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
