Section 23 (Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P1493 EGR Solenoid Valve Signal #1 Circuit Malfunction (High Input)
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

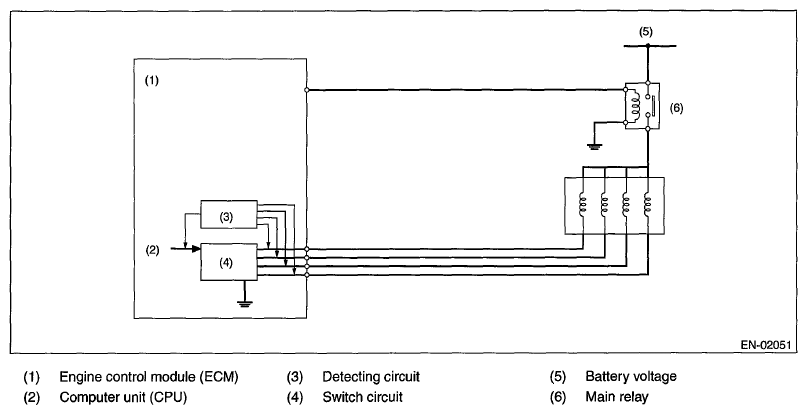

Fig 1: Battery Voltage Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
