Purge Control Solenoid Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

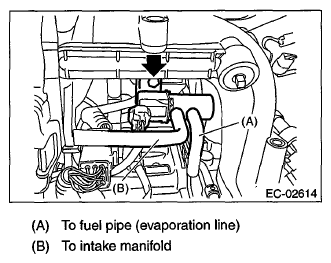

Fig 1: Locating Purge Control Solenoid Valve Connector

Courtesy of SUBARU OF AMERICA, INC.
