Section 20 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0340 Camshaft Position Sensor "A" Circuit (Bank 1 Or Single Sensor)
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

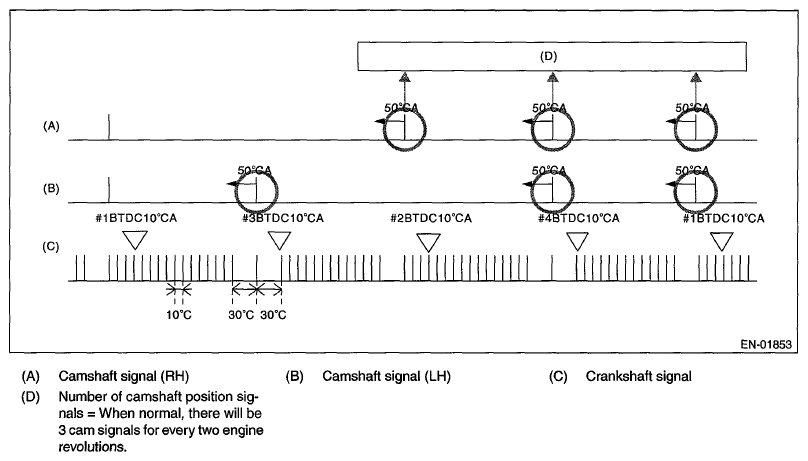

Fig 1: Camshaft Signal And Crankshaft Signal Chart
Courtesy of SUBARU OF AMERICA, INC.
