Diagnostic Method

• Intermediate

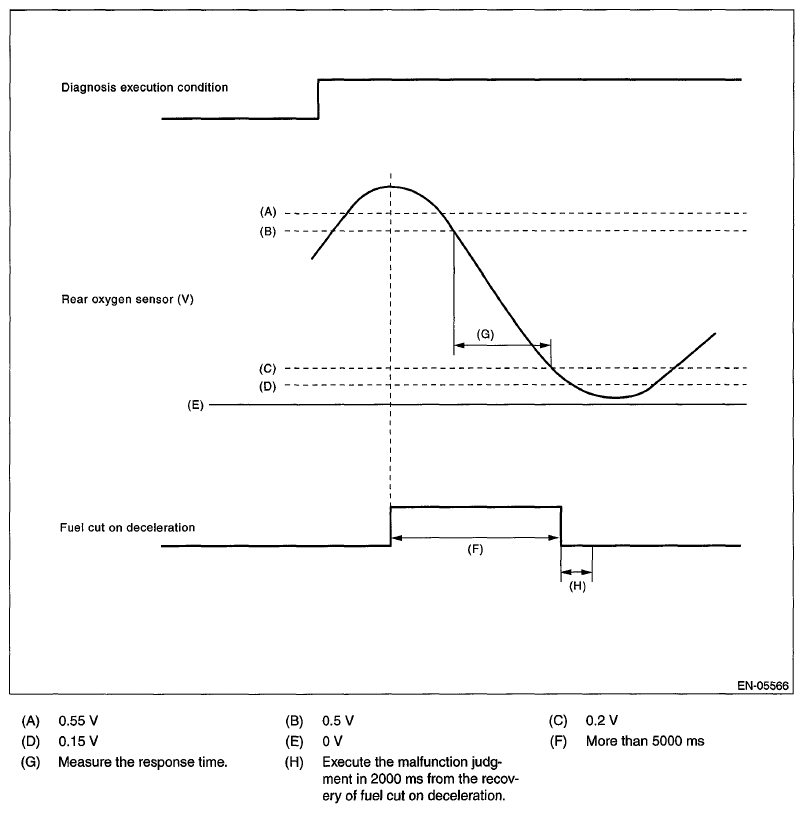

When the oxygen sensor output voltage changes from 0.55 V (rich) to 0.15 V (lean), calculate the minimum response time for output change between 0.5 V and 0.2 V for the judgment criteria.

Fig 1: Oxygen Sensor Voltage Output Graph

Courtesy of SUBARU OF AMERICA, INC.

• Wide

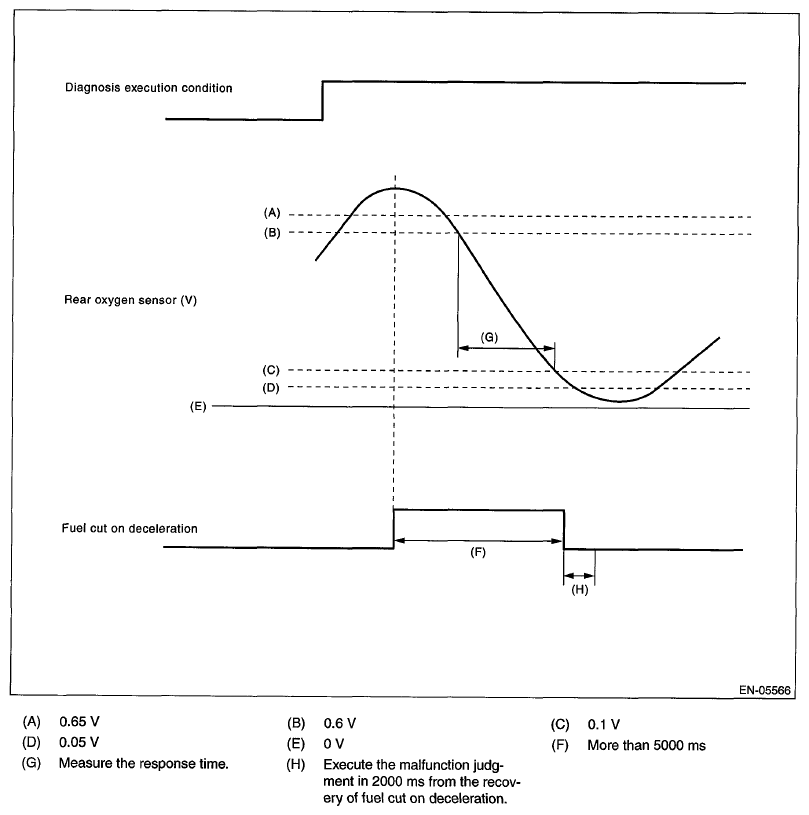

When the oxygen sensor output voltage changes from 0.65 V (rich) to 0.05 V (lean), calculate the minimum response time for output change between 0.6 V and 0.1 V for the judgment criteria.

Fig 2: Oxygen Sensor Voltage Output Graph

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

1. Judge as NG when the judgment value is larger than the threshold value after deceleration fuel cut.

   Response time (diagnosis value) > threshold value → abnormal

   NOTE: Perform NG judgment only during fuel cut, when exhaust gas apparently changes from rich → lean. Even without deceleration fuel cut, judge as OK if the value is below the threshold.
2. Judge as NG when the oxygen sensor voltage at a deceleration fuel cut is large.

Judge as NG when oxygen sensor voltage is large even after a long period of deceleration fuel cut has completed.

Judgment value (Intermediate)

Judgment value (Wide)

Map

Time Needed for Diagnosis:  1 time(s)

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

1. Regardless of a deceleration fuel cut, if the response time (diagnosis value) when the oxygen sensor voltage has changed from rich to lean is shorter than the threshold value (judgment value), judge as a normal condition.

   Response time (diagnosis value) ≤ threshold value → normal

2. Do not judge as a normal condition.

   Judge as OK and clear the NG if the following conditions are established.

   Judgment value (Intermediate)

   JUDGMENT VALUE



   Malfunction Criteria	Threshold Value
   Shortest time change from rich (0.5 V O<2 output) to lean (0.2 V) when voltage reduces from 0.55 V to 0.15 V	≤ 837 ms

   Judgment value (Wide)

   JUDGMENT VALUE



   Malfunction Criteria	Threshold Value
   Shortest time change from rich (0.6 V O<2 output) to lean (0.1 V) when voltage reduces from 0.65 V to 0.05 V	≤ 2000 ms

   Time Needed for Diagnosis:  1 time(s)

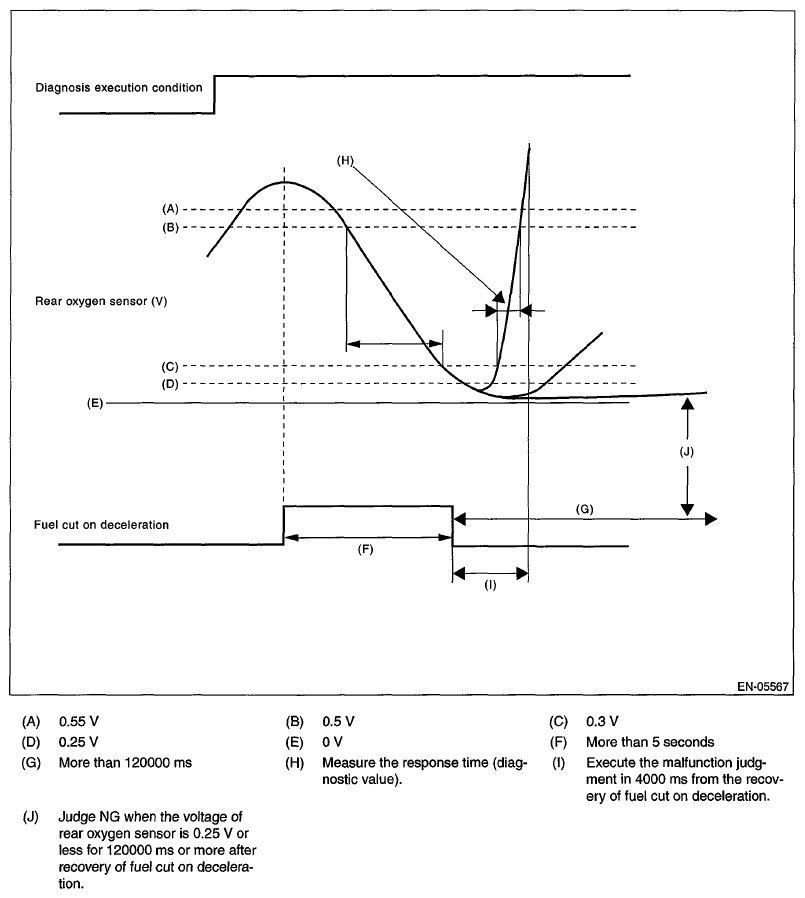

When the oxygen sensor output voltage changes from 0.25 V (lean) to 0.55 V (rich), calculate the minimum response time for output change between 0.3 V and 0.5 V for the judgment criteria.

Fig 1: Oxygen Sensor Voltage Output Graph

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

1. Judge as NG when the judgment value is larger than the threshold value after deceleration fuel cut.

   Response time (diagnosis value) > threshold value → abnormal

2. If the oxygen sensor voltage is small after recovering from a deceleration fuel cut, and remains small, judge as NG.

Judgment Value

Time Needed for Diagnosis:  1 time(s)

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

1. Regardless of a deceleration fuel cut, if the response time (diagnosis value) when the oxygen sensor voltage has changed from rich to lean is shorter than the threshold value (judgment value), judge as a normal condition.

   Response time (diagnosis value) ≤ threshold value → normal

2. Do not judge as a normal condition.

   Judge as OK and clear the NG if the following conditions are established.

   Judgment Value

   JUDGMENT VALUE



   Malfunction Criteria	Threshold Value
   Shortest time change from lean (0.3 V O<2 output) to rich (0.5 V) when voltage changes from 0.25 V to 0.55 V	≤ 4000 ms

   Time Needed for Diagnosis:  1 time(s)
