Section 2 (Engine Ignition System - Ignition (H4DOTC - 2.5L DOHC Turbo))
>>
General Description
>>
Components With Torque Specifications
Components With Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

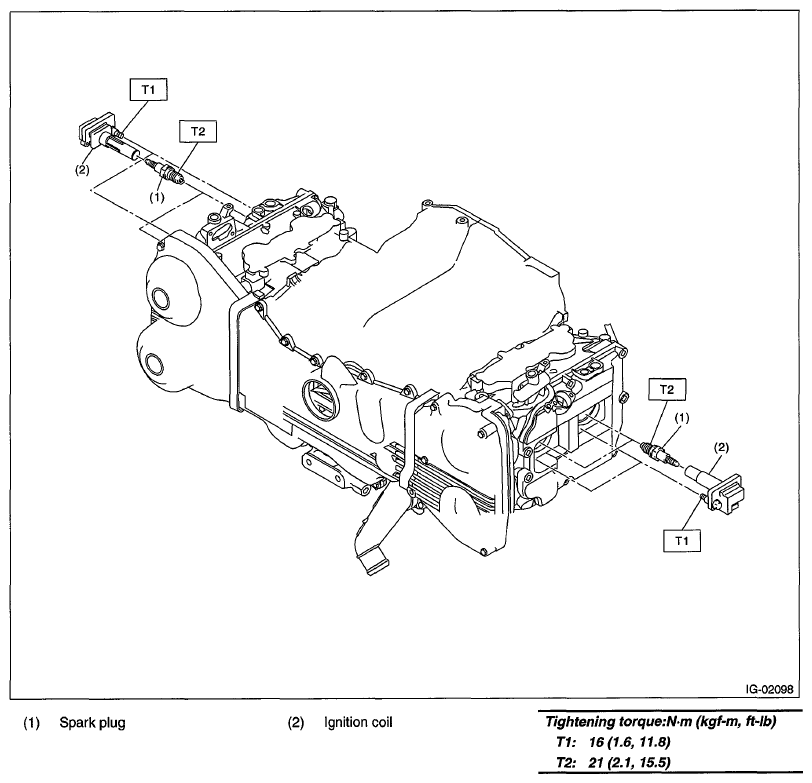

Fig 1: Ignition Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
