Purge Control Solenoid Valve 1

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

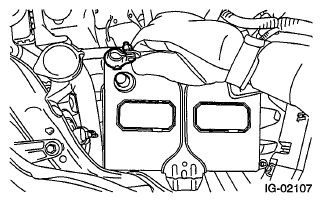

Fig 1: Identifying Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. Ref. to REMOVAL , Intercooler.
Remove the bolt securing the solenoid valve bracket assembly from intake manifold.

Fig 2: Identifying Solenoid Valve Bracket Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the PCV pipe and engine harness from intake manifold.

Fig 3: Locating PCV Pipe And Engine Harness
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut securing the purge control solenoid valve 1 to the solenoid valve bracket assembly.

Fig 4: Identifying Purge Control Solenoid Valve And Solenoid Valve Bracket Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and evaporation hose (B), and then remove the purge control solenoid valve 1.

Fig 5: Locating Connector And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
