Fuel Tank Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Place "NO OPEN FLAMES" signs near the working area.

Disconnect the ground cable from battery.

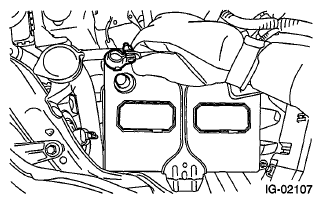

Fig 1: Identifying Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Lift up the vehicle.
Disconnect connector (A) from fuel tank pressure sensor.
Pull out the vacuum hose (B) from vehicle.
Remove the fuel tank pressure sensor from the bracket.

Fig 2: Identifying Vacuum Hose And Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pressure hose from fuel tank pressure sensor and remove the fuel tank pressure sensor.

Fig 3: Disconnecting Pressure Hose From Fuel Tank Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
