Section 17 (Continuously Variable Transmission - Diagnostics): Electrical Component Location: Location: Solenoid

WARNING: This page is about a different variant/trim than selected.

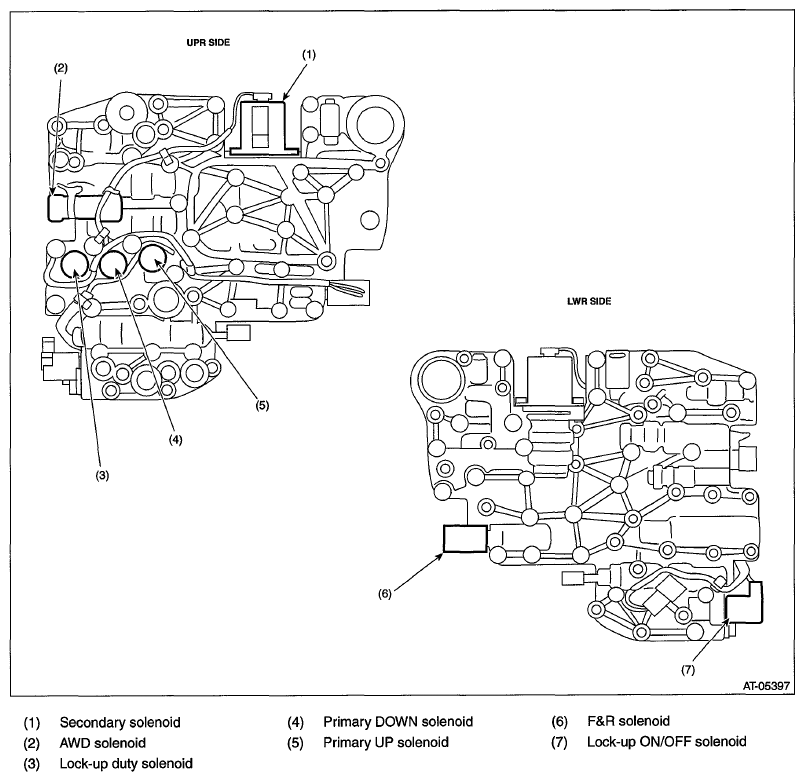

Fig 1: Identifying Secondary Solenoid, Primary Down Solenoid, Awd Solenoid, Primary Up Solenoid And Lock-Up ON/OFF Solenoid

Courtesy of SUBARU OF AMERICA, INC.
