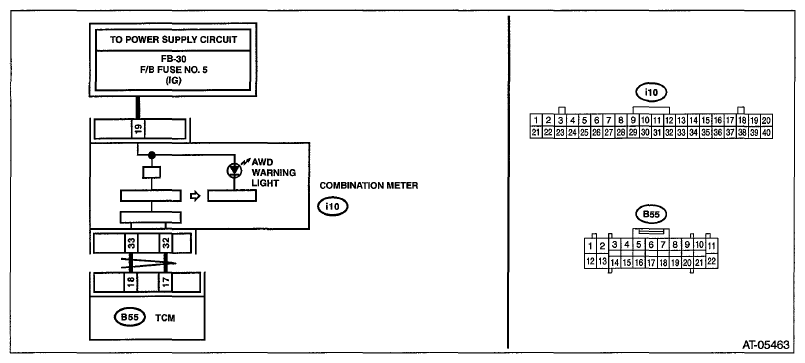

AWD Warning Light Display: Inspection: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK AWD LIGHT. Turn the ignition switch to ON. |
Does the AWD light illuminate? | Go to step 2 . | Perform self diagnosis of the combination meter. Ref. to INSPECTION , Combination Meter System. |
| 2 CHECK AWD LIGHT. Start the engine. |
Does AWD light go off after two seconds from engine start? | Current condition is normal. Go back to "Basic Diagnostic Procedure". Ref. to BASIC DIAGNOSTIC PROCEDURE . | Go to step 3 . |
| 3 CHECK DTC. Read the DTC relating the TCM using the Subaru Select Monitor. |
Is DTC displayed? | Perform the diagnosis according to DTC. | Go to step 4 . |
| 4 CHECK AWD LIGHT. Check the display of AWD light after engine start. |
Is AWD light illuminating? | Go to step 6 . | Go to step 5 . |
| 5 CHECK AWD LIGHT. Check the display of AWD light after engine start. |
Is AWD light blinking at 2 Hz? | Go to step 7 . | Go to step 8 . |
| 6 CHECK AWD ON/OFF SWITCHING FUNCTION. Using the Subaru Select Monitor, select the {AWD ON/OFF switching mode} from «AT related learning & inspecting mode», and check the current mode. Ref. to AWD ON/OFF SWITCHING MODE . |
Is the message "Currently, vehicle is AWD. Do you change to FF?" displayed? | Go to step 8 . | If the message "At present, the vehicle is in FF. Switch to AWD?" is displayed, select "OK", and switch to AWD mode. |
| 7 CHECK REAR DIFFERENTIAL. Using the Subaru Select Monitor, select the {Rear differential inspection mode} from «AT related learning & inspecting mode», and check. Ref. to REAR DIFFERENTIAL INSPECTION MODE . |
Does AWD light go off after inspection is finished normally? | Current condition is normal. Go back to "Basic Diagnostic Procedure". Ref. to BASIC DIAGNOSTIC PROCEDURE . | Go to step 8 . |
| 8 CHECK COMBINATION METER. Perform self diagnosis of the combination meter. Ref. to INSPECTION , Combination Meter System. |
Is there any trouble with the combination meter? | Repair the combination meter. | Check the TCM. |
