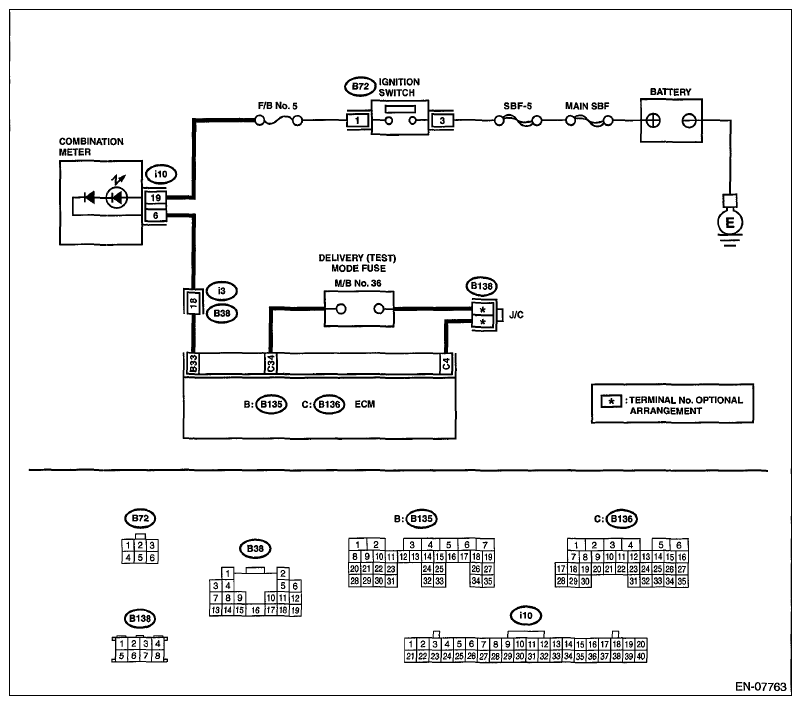

Malfunction Indicator Light Does Not Come On: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK OUTPUT SIGNAL OF ECM.
Connector & terminal (B135) No. 33 (+) - Chassis ground (-): |
Is the voltage 10 V or more? | Go to step 5. | Go to step 2. |
2 CHECK HARNESS BETWEEN COMBINATION METER AND ECM CONNECTOR.
Connector & terminal (B135) No. 33 - (i10) No. 6: |
Is the resistance less than 1 Ω? | Go to step 3. | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
| 3 CHECK FOR POOR CONTACT. Check for poor contact of combination meter connector. |
Is there poor contact of combination meter connector? | Repair the poor contact of combination meter connector. | Go to step 4. |
4 CHECK HARNESS BETWEEN COMBINATION METER AND IGNITION SWITCH CONNECTOR.
Connector & terminal (i10) No. 19 (+) - Chassis ground (-): |
Is the voltage 10 V or more? | Replace the meter case assembly of combination meter. Ref. to COMBINATION METER . | Check the following item and repair if necessary.
NOTE:
|
| 5 CHECK FOR POOR CONTACT. Check for poor connection by shaking or pulling ECM connector and harness. |
Does the malfunction indicator light illuminate? | Repair the poor contact of ECM connector. | Go to step 6. |
| 6 CHECK ECM CONNECTOR. Check the connection of ECM connector. |
Is the ECM connector correctly connected? | Replace the ECM. Ref. to ENGINE CONTROL MODULE (ECM) . | Repair the connection of ECM connector. |
