Section 16 (Engine Controls - Engine (Diagnostics) (H6DO - 3.6L DOHC)): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.

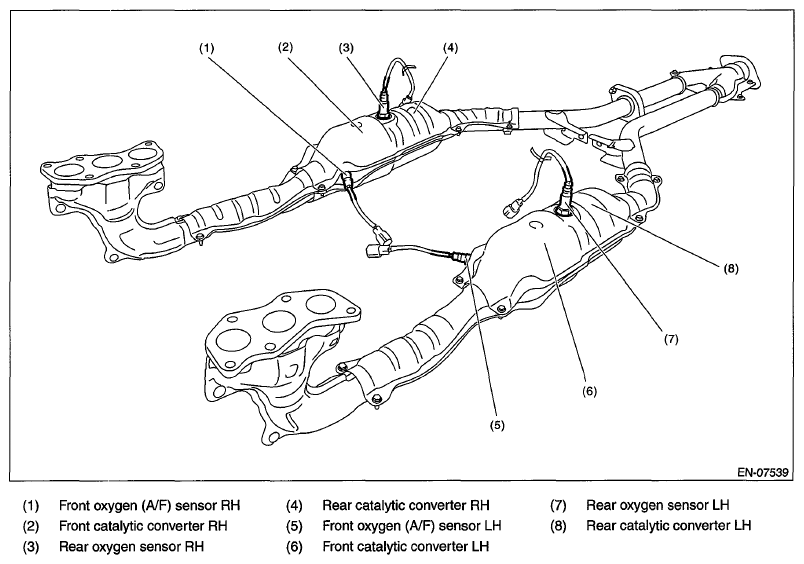

Fig 1: Identifying Control Module Sensor Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

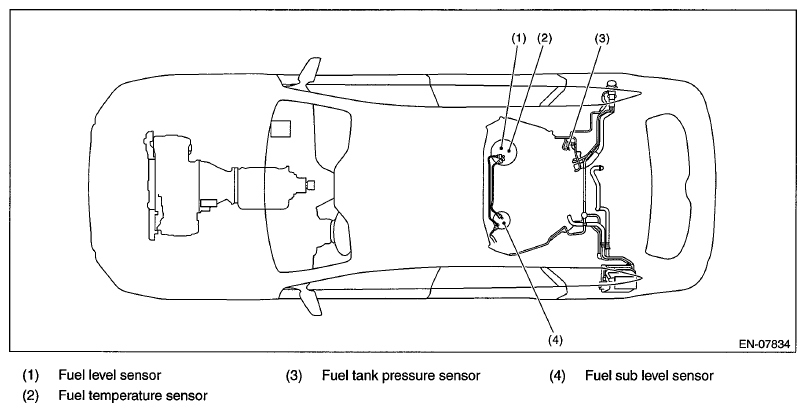

Fig 2: Identifying Control Module Sensor Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

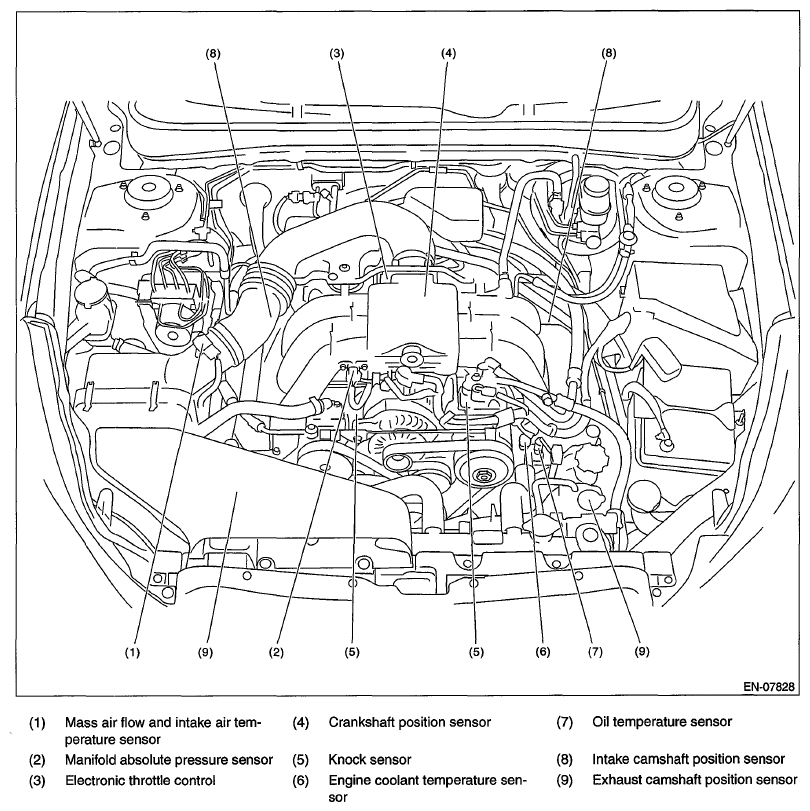

Fig 3: Identifying Control Module Sensor Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

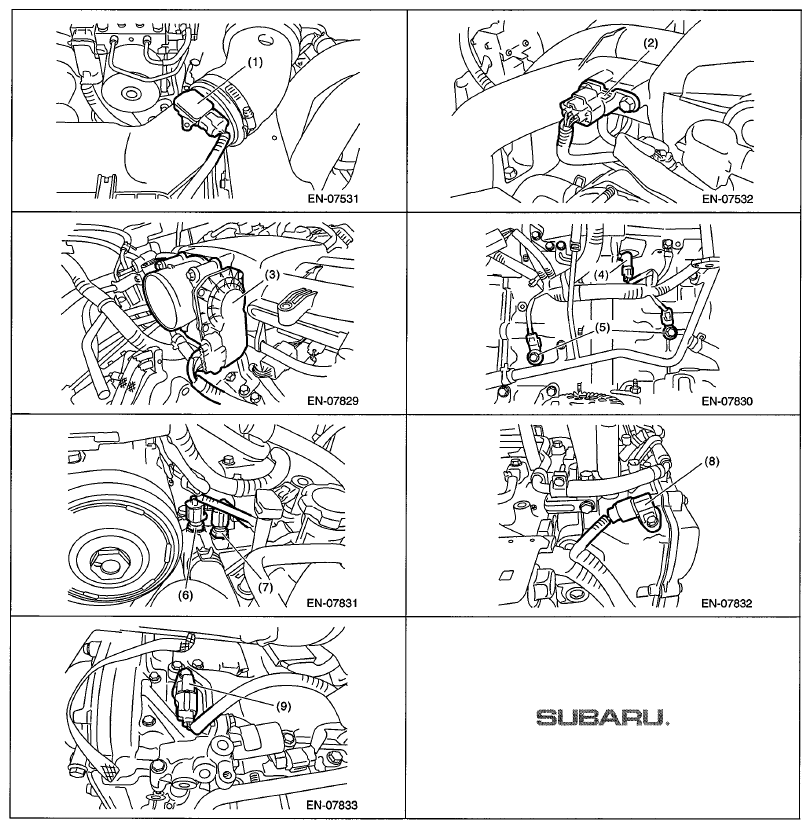

Fig 4: Identifying Control Module Sensor Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

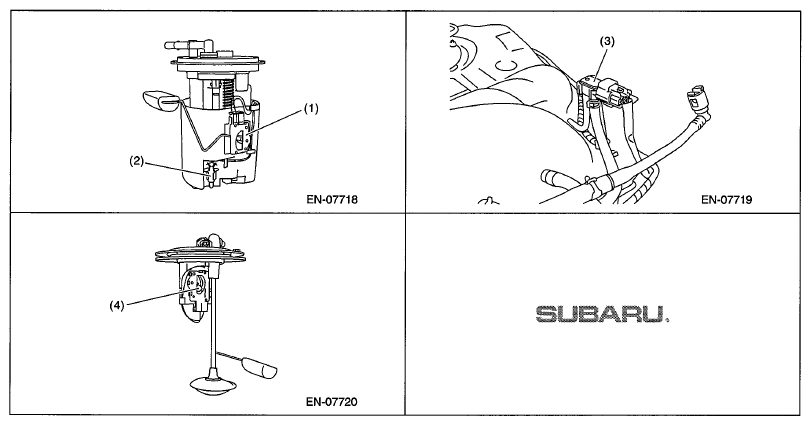

Fig 5: Identifying Control Module Sensor Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
