Diagnostics for Engine Starting Failure: Procedure

WARNING: This page is about a different variant/trim than selected.

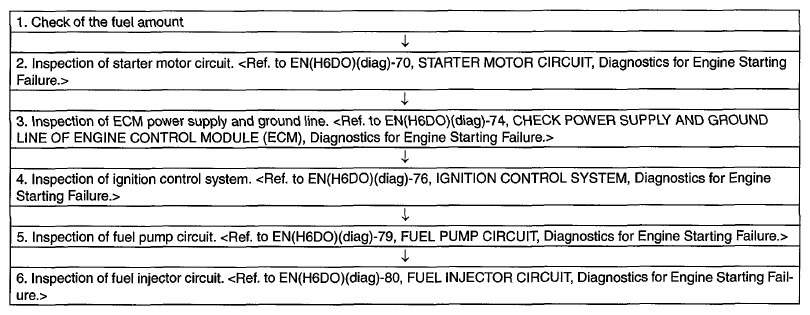

Fig 1: Engine Starting Failure Diagnostic Procedure
G06648019Courtesy of SUBARU OF AMERICA, INC.
