DTC P0607 Throttle Control System Circuit Range/Performance: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

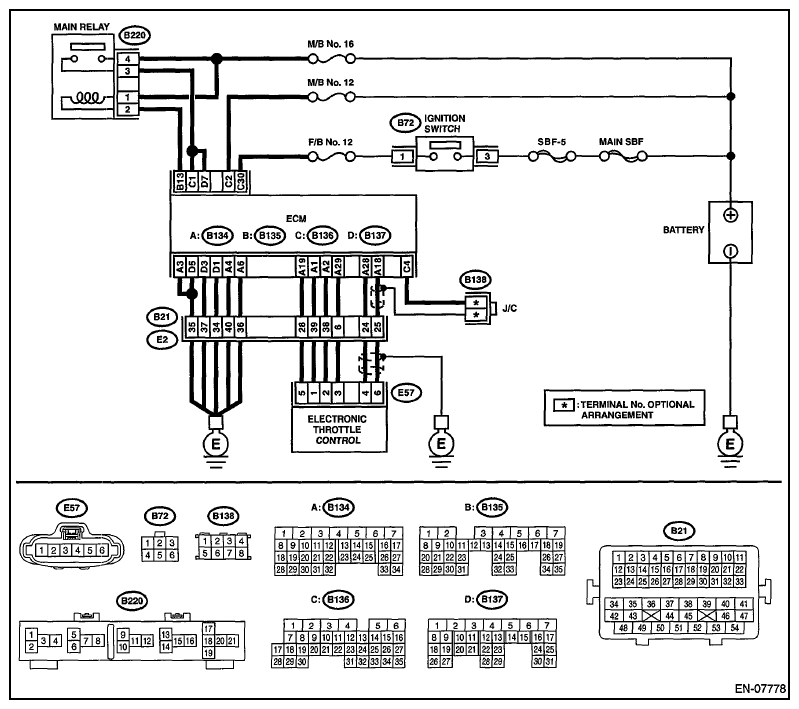

Fig 1: Electronic Throttle Control - Wiring Diagram
G06648091Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE

Step Check Yes No
1 CHECK INPUT VOLTAGE OF ECM.
  1. Turn the ignition switch to ON.
  2. Measure the voltage between ECM and chassis ground.

Connector & terminal
(B136) No. 1 (+) - Chassis ground (-):
(B137) No. 7 (+) - Chassis ground (-): 		 Is the voltage 10 -13 V? Go to step 2.  Repair the open or ground short circuit of power supply circuit.
2 CHECK INPUT VOLTAGE OF ECM.
  1. Start the engine.
  2. Measure the voltage between ECM and chassis ground.

Connector & terminal
(B136) No. 1 (+) - Chassis ground (-):
(8137) No. 7 (+) - Chassis ground (-): 		 Is the voltage 13 - 15 V? Go to step 3.  Repair the open or ground short circuit of power supply circuit.
3 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from the ECM and electronic throttle control.
  3. Measure the resistance of harness between ECM and electronic throttle control connector.

Connector & terminal
(B134) No. 19 - (E57) No. 5:
(B134) No. 29 - (E57) No. 3: 		 Is the resistance less than 1 CI? Go to step 4.  Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in harness between ECM and electronic throttle control connector
  • Poor contact of coupling connector
4 CHECK ECM GROUND HARNESS.
  1. Connect all connectors.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between ECM and chassis ground.

Connector & terminal
(B134) No. 3 (+) - Chassis ground (-):
(B134) No. 4 (+) - Chassis ground (-):
(B134) No. 6 (+) - Chassis ground (-):
(B137) No. 1 (+) - Chassis ground (-):
(8137) No. 3 (+) - Chassis ground (-):
(B137) No. 5 (+) - Chassis ground (-): 		 Is the voltage less than 1 V? Repair the poor contact of ECM connector. Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in ground circuit
  • Retightening of engine ground terminals
  • Poor contact of coupling connector
