DTC P1152 O2 Sensor Circuit Range/Performance (Low) (Bank 1 Sensor 1): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

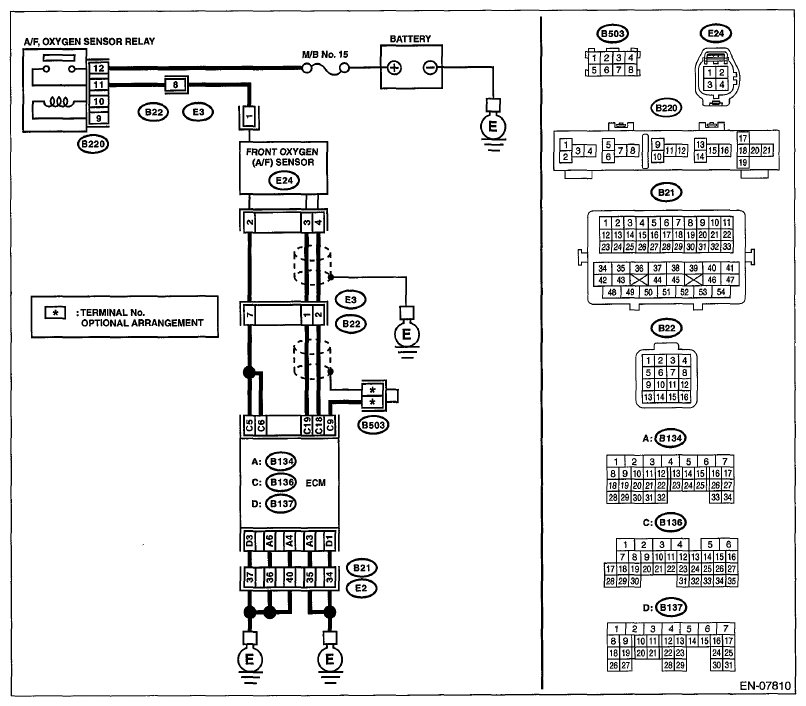

Fig 1: HO2S Heater Control (Bank 1 Sensor 1) - Wiring Diagram

G06647755

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK FRONT OXYGEN (A/F) SENSOR CONNECTOR AND COUPLING CONNECTOR .	Has water entered the connector?	Completely remove any water inside.	Go to step 2 .
2 CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR . Turn the ignition switch to OFF. Disconnect the connectors from ECM and front oxygen (A/F) sensor. Measure the resistance of harness between ECM and front oxygen (A/F) sensor connector. Connector & terminal (B136) No. 19 - (E24) No. 3: (B136) No. 18 - (E24) No. 4:	Is the resistance less than 1 Ω?	Go to step 3 .	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM and front oxygen (A/F) sensor connector Poor contact of coupling connector
3 CHECK FOR POOR CONTACT . Check for poor contact of the front oxygen (A/F) sensor connector.	Is there poor contact of front oxygen (A/F) sensor connector?	Repair the poor contact of front oxygen (A/F) sensor connector.	Replace the front oxygen (A/F) sensor. Ref. to FRONT OXYGEN (A/F) SENSOR .
