DTC P0451 Evaporative Emission Control System Pressure Sensor: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

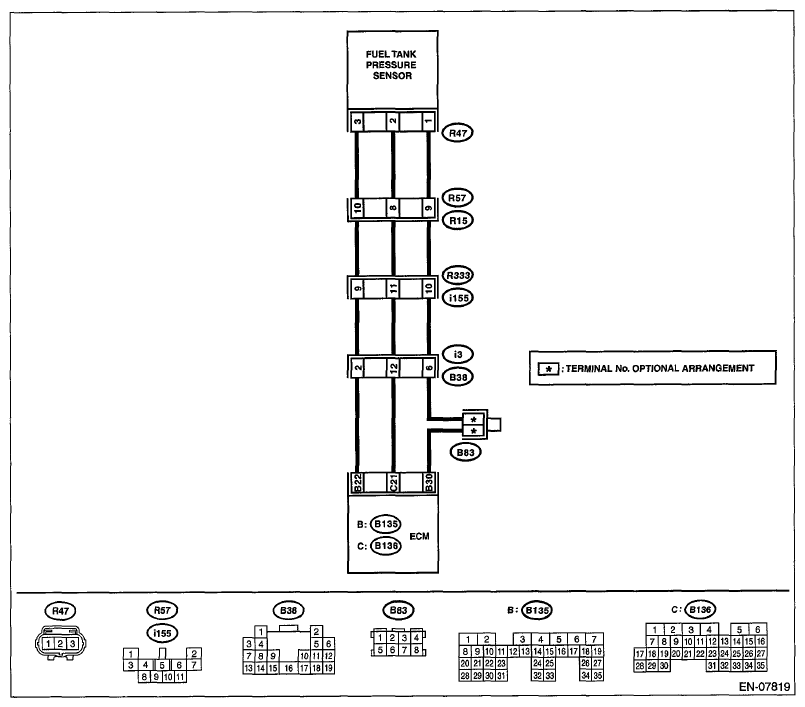

Fig 1: Evaporative Emission Control System Pressure Sensor - Wiring Diagram

G06647809

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK FUEL FILLER CAP . Turn the ignition switch to OFF. Open the fuel flap.	Is the fuel filler cap tightened securely?	Go to step 2 .	Tighten fuel filler cap securely.
2 CHECK PRESSURE/VACUUM LINE . NOTE: Check the following items. Disconnection, leakage and clogging of the vacuum hoses and pipes between fuel tank pressure sensor and fuel tank Disconnection, leakage and clogging of air ventilation hoses and pipes between fuel filler pipe and fuel tank	Is there any fault in pressure/vacuum line?	Repair or replace the hoses and pipes.	Replace the fuel tank pressure sensor. Ref. to FUEL TANK PRESSURE SENSOR .
