Section 14 (Exhaust System - Exhaust (H4DOTC - 2.5L DOHC Turbo))
>>
General Description
>>
Components With Torque Specifications
>>
Center And Rear Exhaust Pipe, And Muffler
Center And Rear Exhaust Pipe, And Muffler
WARNING:
This page is about a different variant/trim than selected.

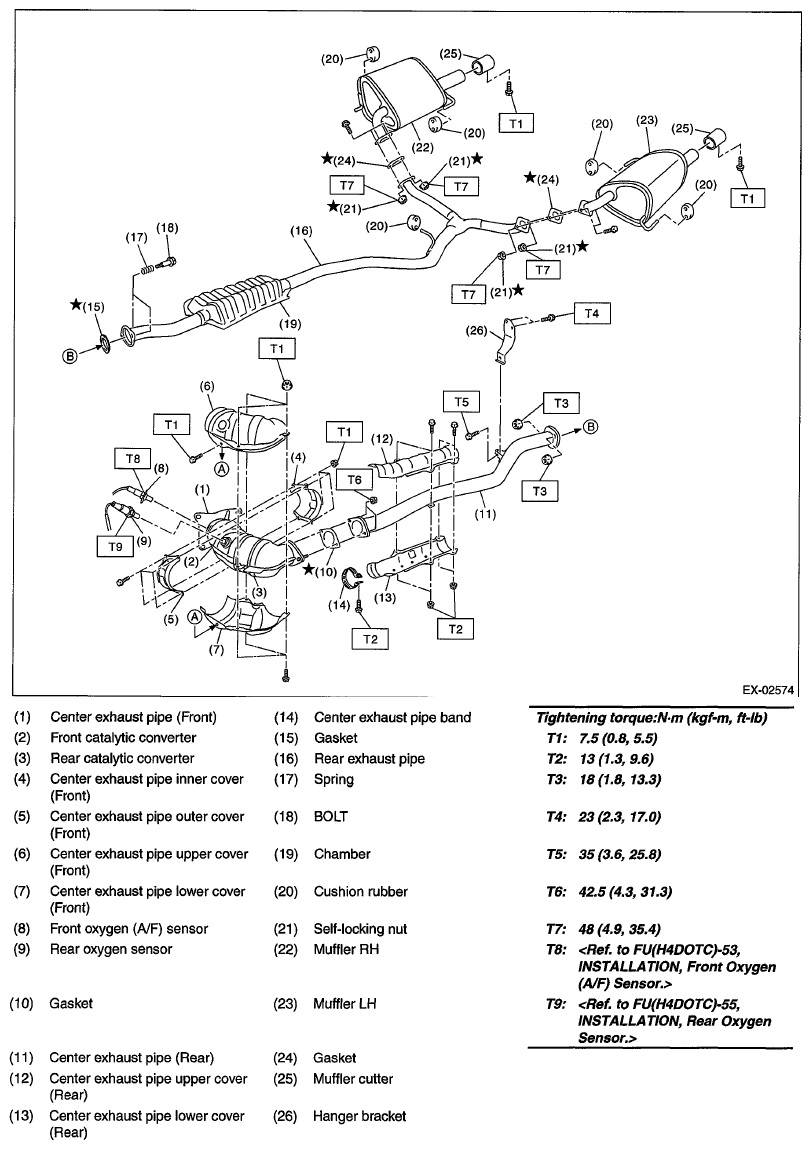

Fig 1: Center And Rear Exhaust Pipe, And Muffler Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
