Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.

Set the range select lever to the "N" range.
Install the parking pawl shaft, return spring and parking pawl.
NOTE: Make sure the return spring sticks out of parking pawl.

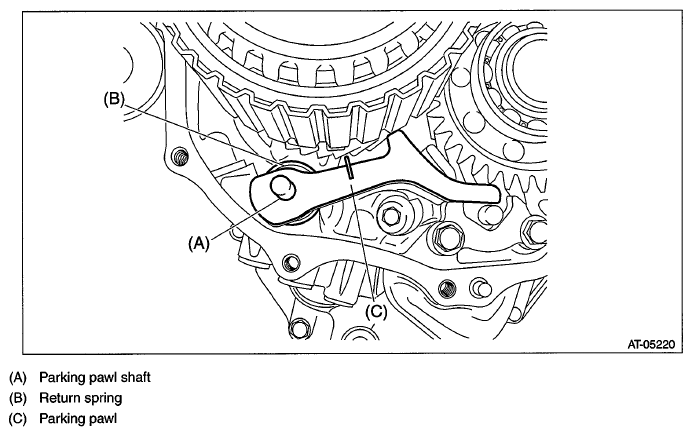

Fig 1: Identifying Parking Pawl Shaft, Return Spring And Parking Pawl
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
