CVTF Cooler Pipe And Hose

WARNING: This page is about a different variant/trim than selected.

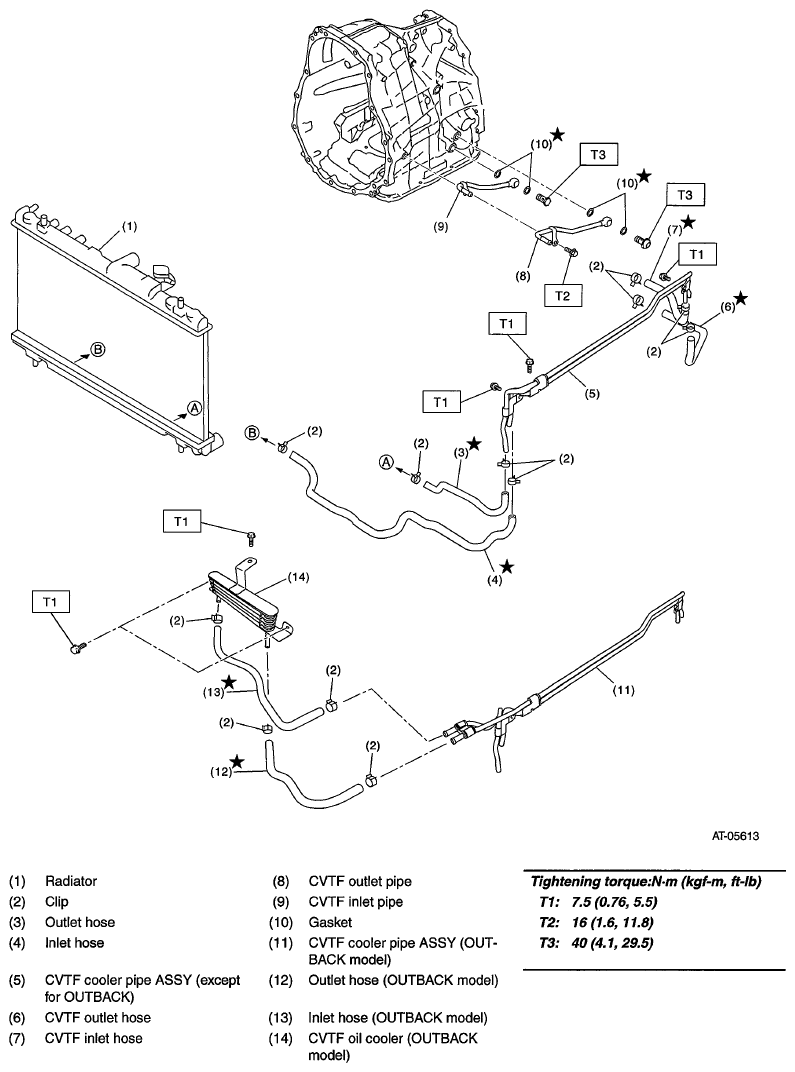

Fig 1: CVTF Cooler Pipe And Hose Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 16 (1.6, 11.8)

T3: 40 (4.1, 29.5)
