Oil Charge Pipe: Installation
WARNING: This page is about a different variant/trim than selected.

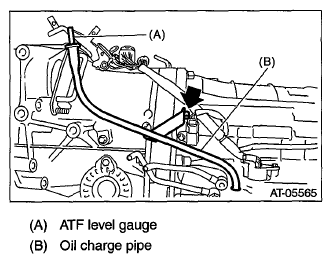

- Install the oil charge pipe.NOTE: Use new gaskets and O-rings.
Tightening torque:
38 N.m (3.9 kgf-m, 28.0 It-lb)
- Connect the connector to the turbine speed sensor 1.
- Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
- Install the under cover. Ref. to INSTALLATION , Front Under Cover.
- Lower the vehicle.
- Connect the ground cable to battery.
