Front Planetary Carrier And Middle & Rear Planetary Carrier

WARNING: This page is about a different variant/trim than selected.

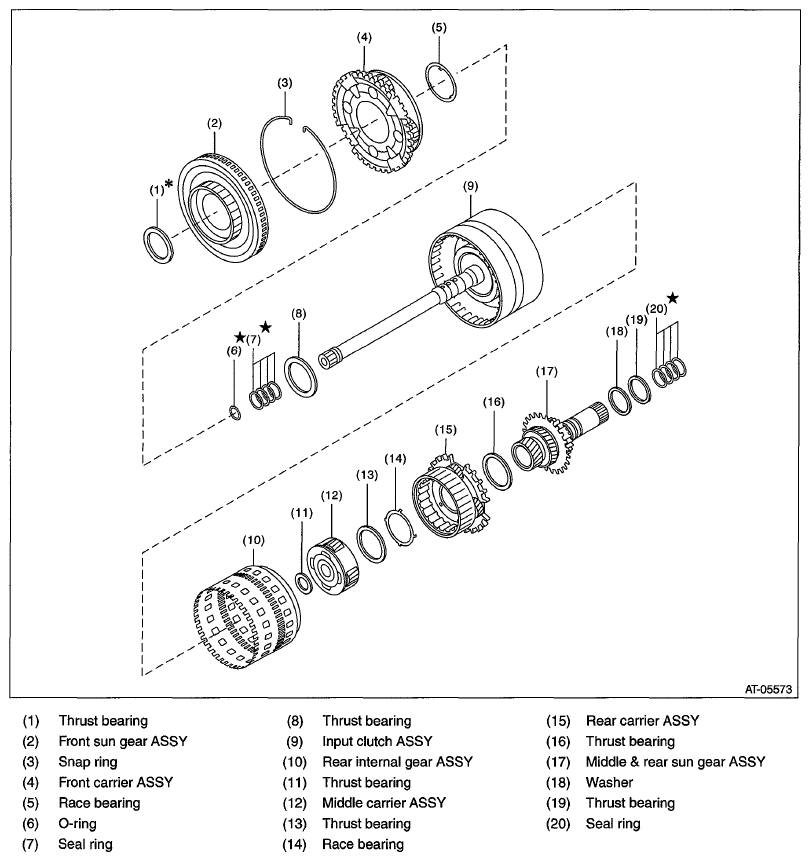

Fig 1: Identifying Front Planetary Carrier And Middle & Rear Planetary Carrier Components

Courtesy of SUBARU OF AMERICA, INC.
