Section 11 (Engine Cooling System - Cooling (H6DO - 3.6L DOHC))
>>
General Description
>>
Components With Torque Specifications
>>
Radiator And Radiator Fan
Radiator And Radiator Fan
WARNING:
This page is about a different variant/trim than selected.
Radiator

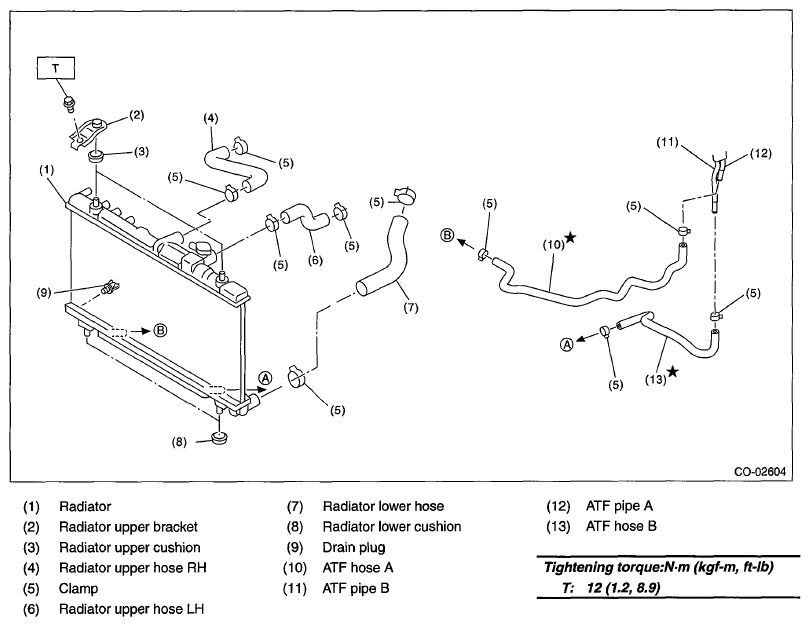

Fig 1: Exploded View Of Radiator With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Radiator fan

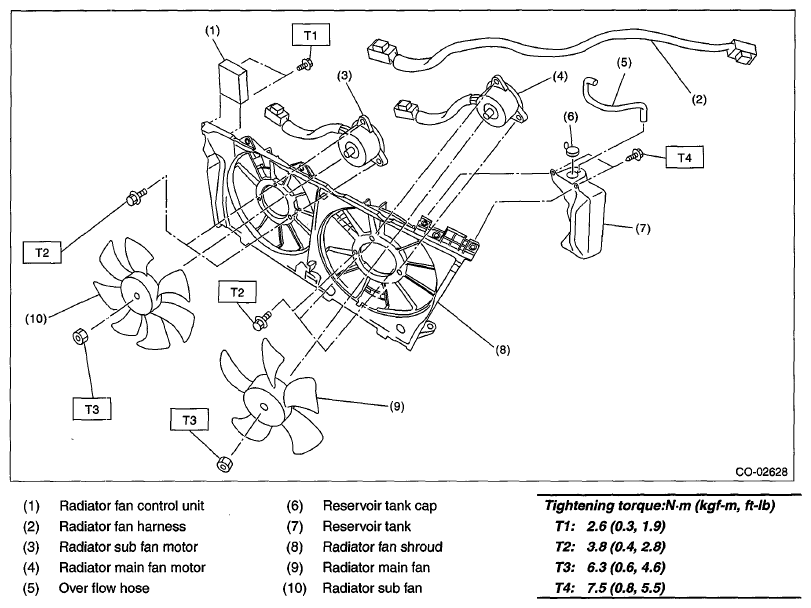

Fig 2: Exploded View Of Radiator Fan With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
