Radiator And Radiator Fan

WARNING: This page is about a different variant/trim than selected.

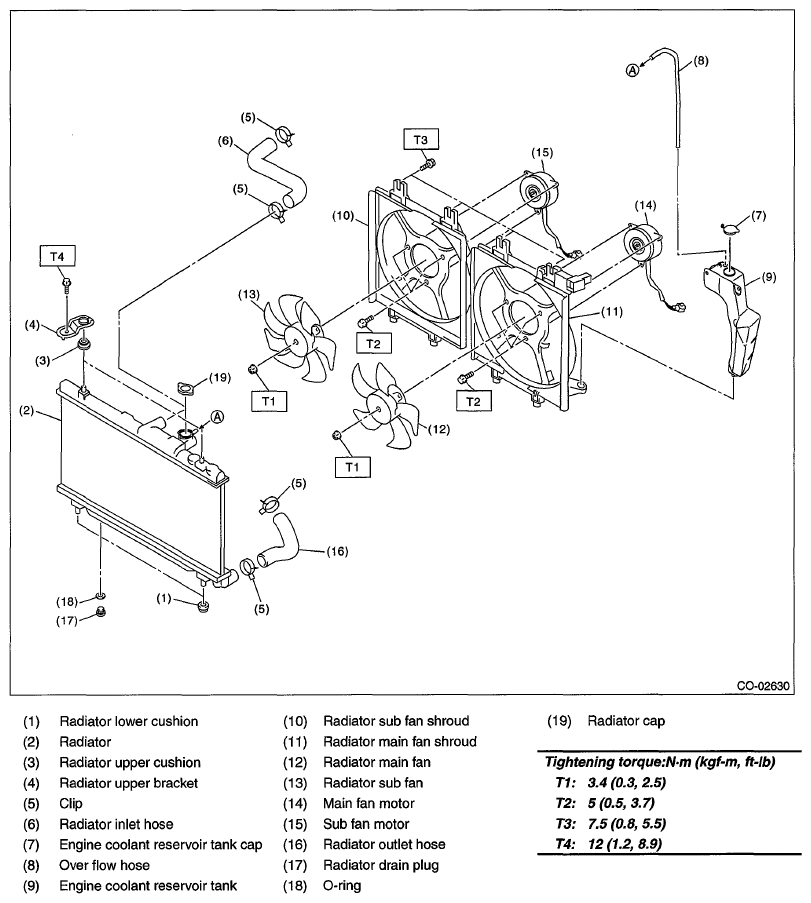

Fig 1: Radiator And Radiator Fan Replacement Components With Torque Specifications
G06649587Courtesy of SUBARU OF AMERICA, INC.
