Oil Level Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Route the oil level switch harness as shown in the figure.

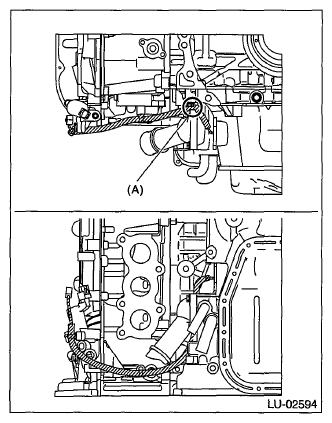

Fig 1: Identifying Oil Level Switch Harness
Courtesy of SUBARU OF AMERICA, INC.
Attach the oil level switch to the oil pan upper.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Locating Oil Level Switch Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach the clips which hold the front camshaft cap (LH) and cylinder head (LH).

Fig 3: Locating Front Camshaft Cap Clips (LH)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Front Camshaft Cap Clips (RH)
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of oil level switch to the engine harness.

Fig 5: Locating Oil Level Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Ref. to INSTALLATION , Front Under Cover.
Lower the vehicle.
Refill the engine oil. Ref. to REPLACEMENT , Engine Oil.
Check the engine oil level. Ref. to INSPECTION , Engine Oil.
