Center And Rear Brake Pipes And Hoses

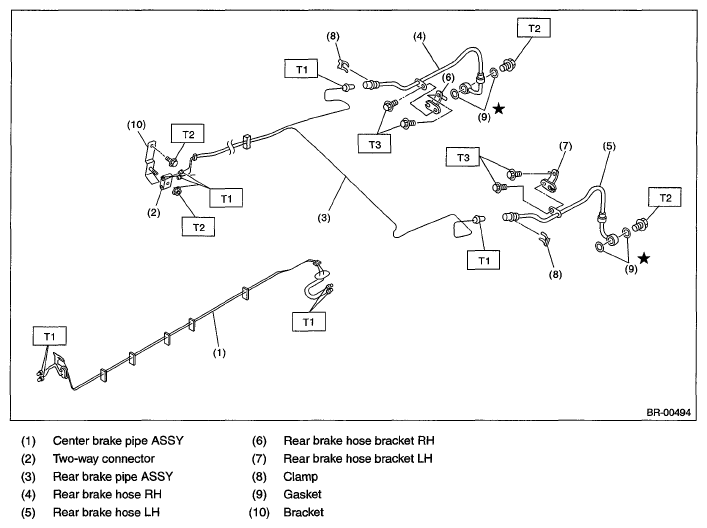

Fig 1: Identifying Center And Rear Brake Pipes And Hoses Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5,10.8)

T2: 18 (1.8, 13.3)

T3: 33 (3.4,24.3)
