Power Seat System: Wiring Diagram

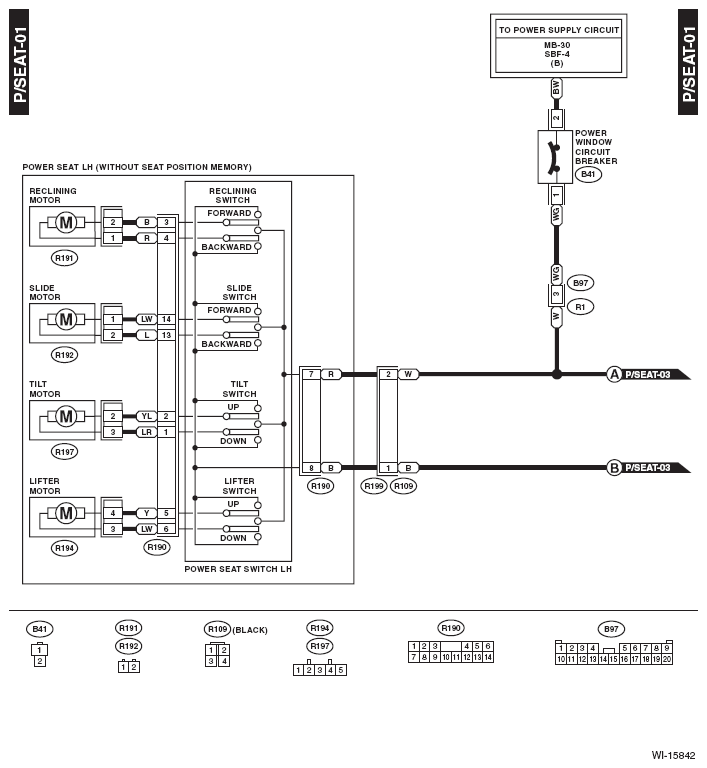

Fig 1: Power Seat System Wiring Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

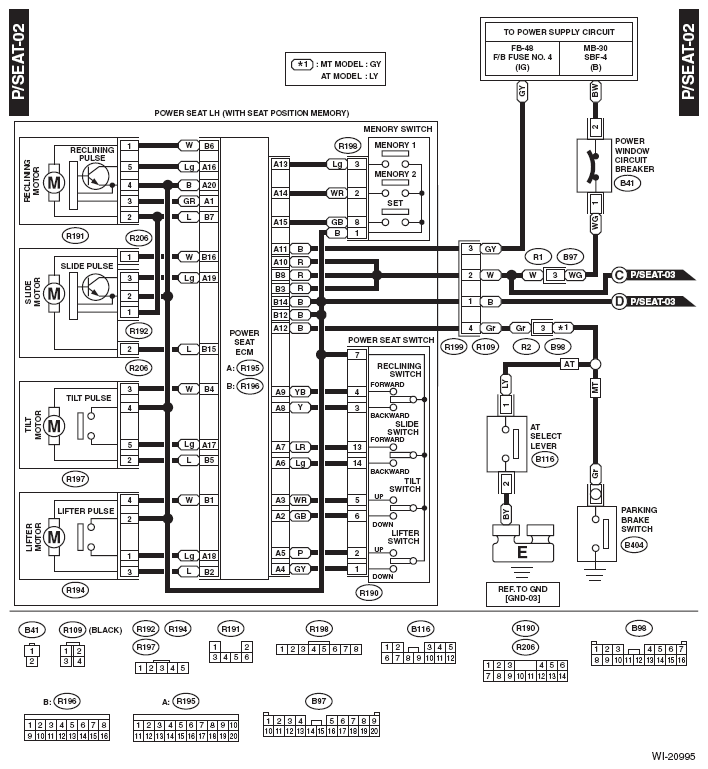

Fig 2: Power Seat System Wiring Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

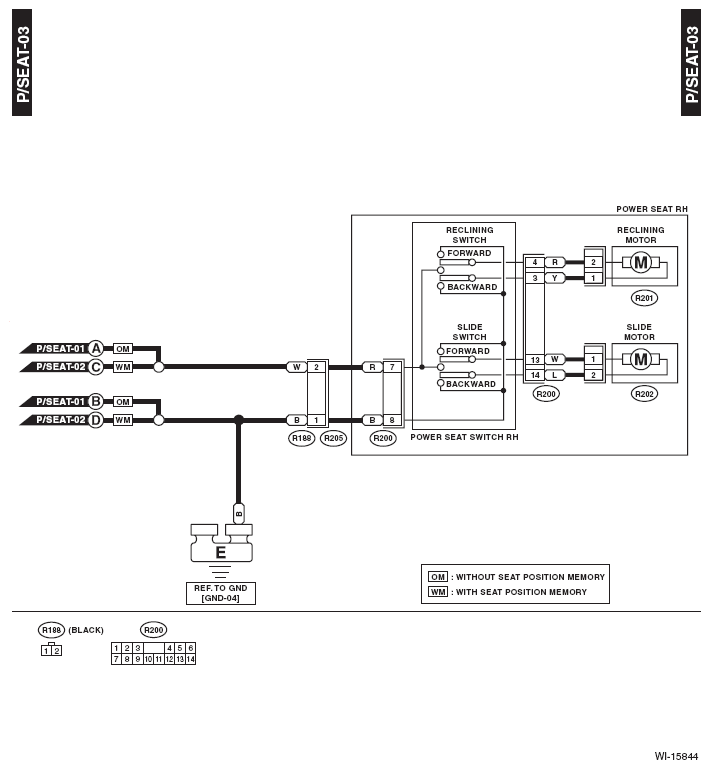

Fig 3: Power Seat System Wiring Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
