Parking Brake/Brake Fluid Level Warning Light System: Wiring Diagram

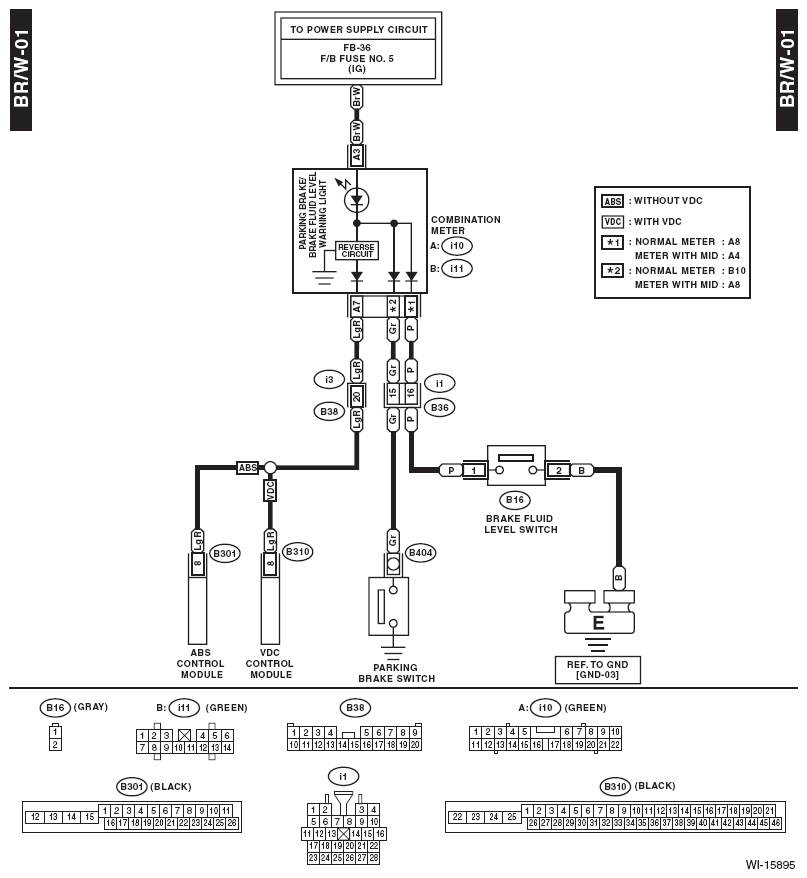

Fig 1: Parking Brake And Brake Fluid Level Warning Light System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
