Body Ground

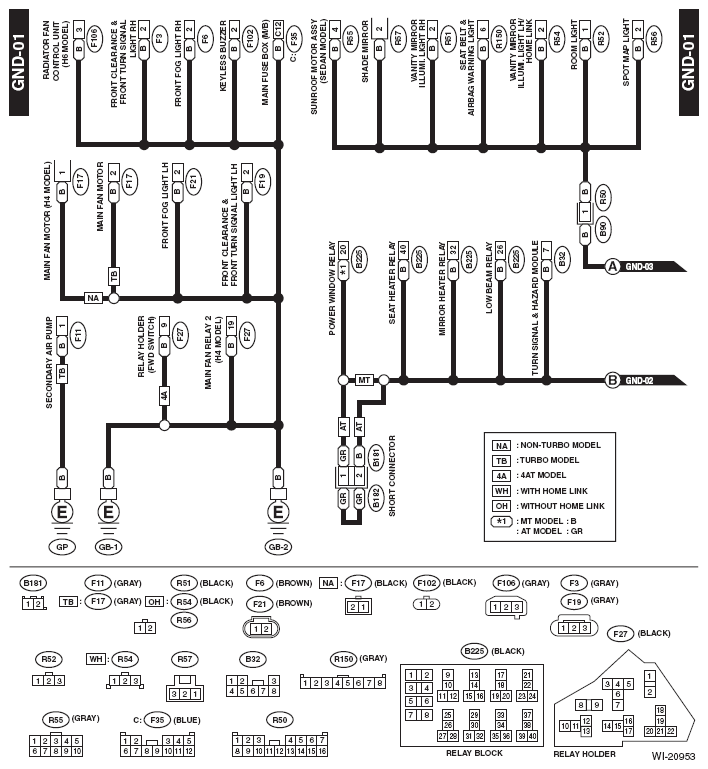

Fig 1: Body Ground Wiring Diagram (1 Of 6)

G11902682

Courtesy of SUBARU OF AMERICA, INC.

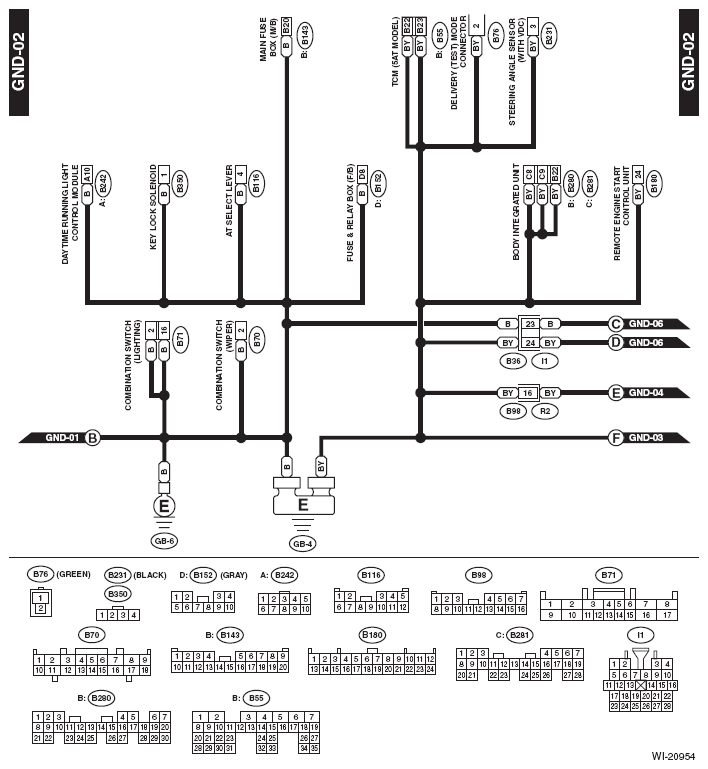

Fig 2: Body Ground Wiring Diagram (2 Of 6)

G11902683

Courtesy of SUBARU OF AMERICA, INC.

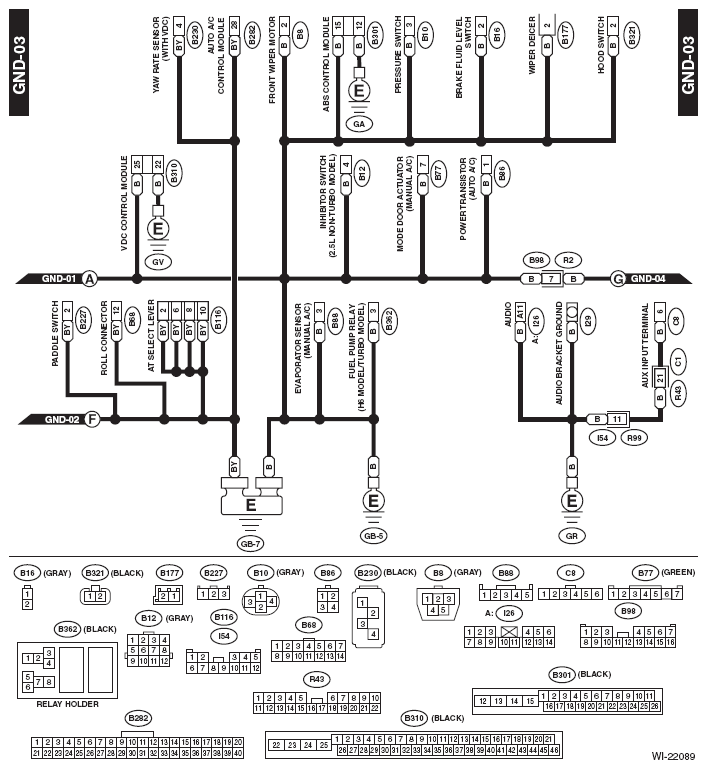

Fig 3: Body Ground Wiring Diagram (3 Of 6)

G11902684

Courtesy of SUBARU OF AMERICA, INC.

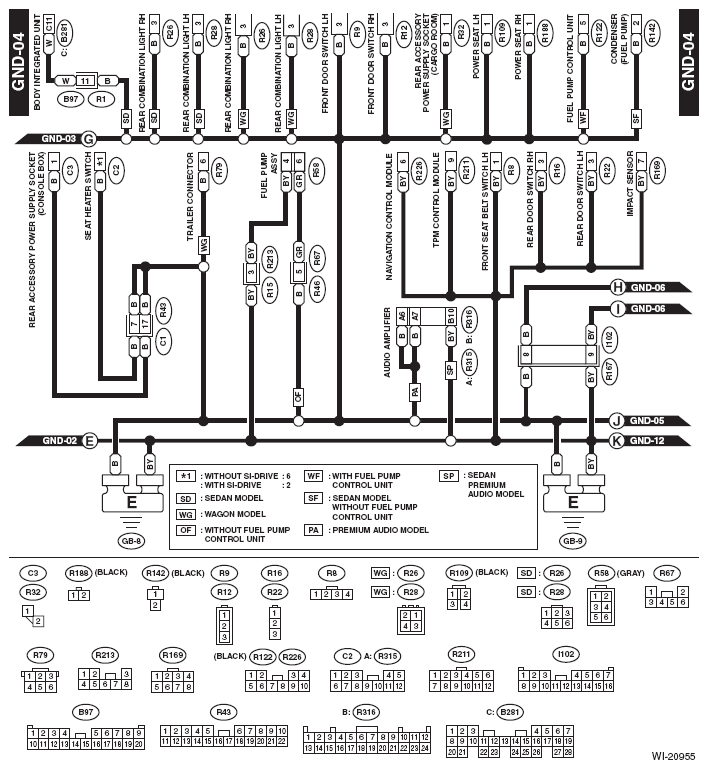

Fig 4: Body Ground Wiring Diagram (4 Of 6)

G11902685

Courtesy of SUBARU OF AMERICA, INC.

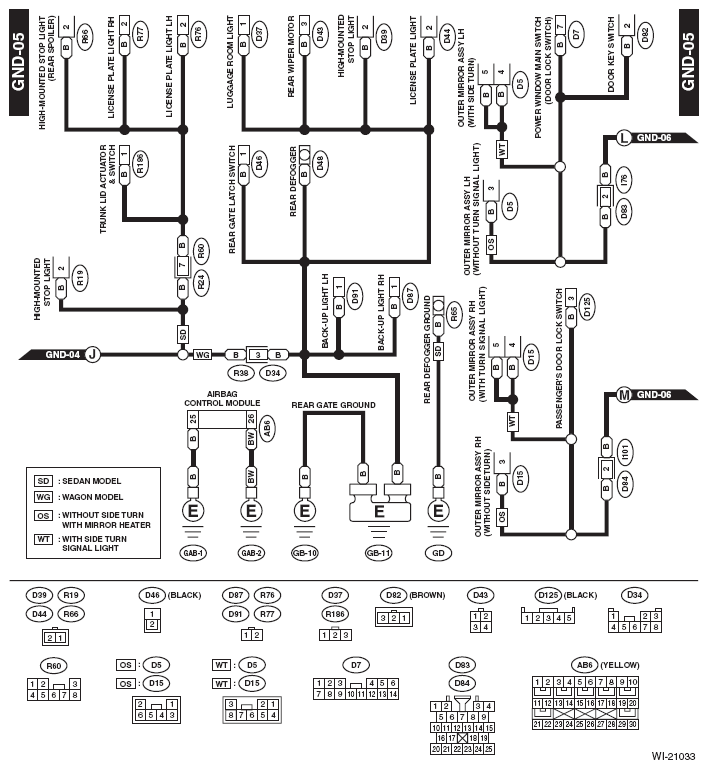

Fig 5: Body Ground Wiring Diagram (5 Of 6)

G11902686

Courtesy of SUBARU OF AMERICA, INC.

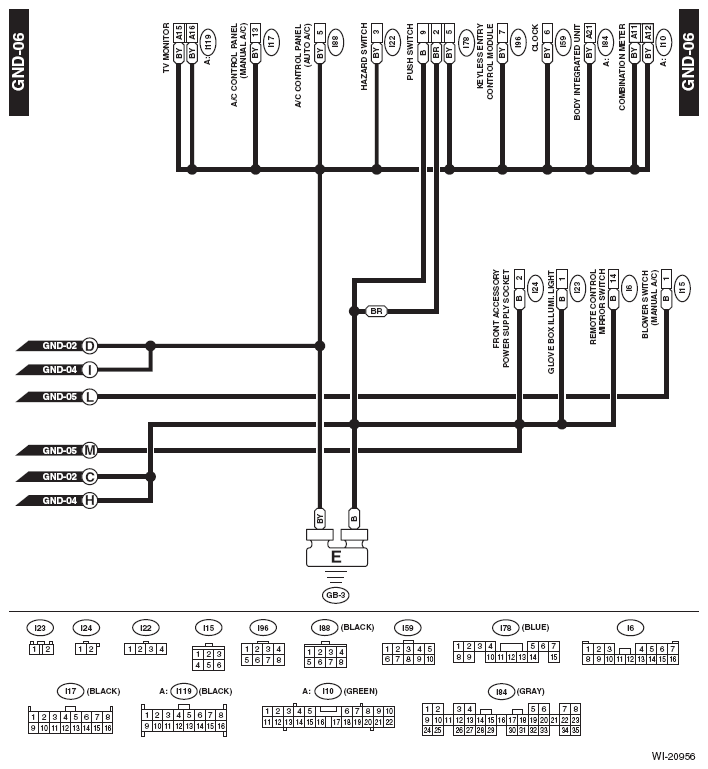

Fig 6: Body Ground Wiring Diagram (6 Of 6)

G11902687

Courtesy of SUBARU OF AMERICA, INC.
