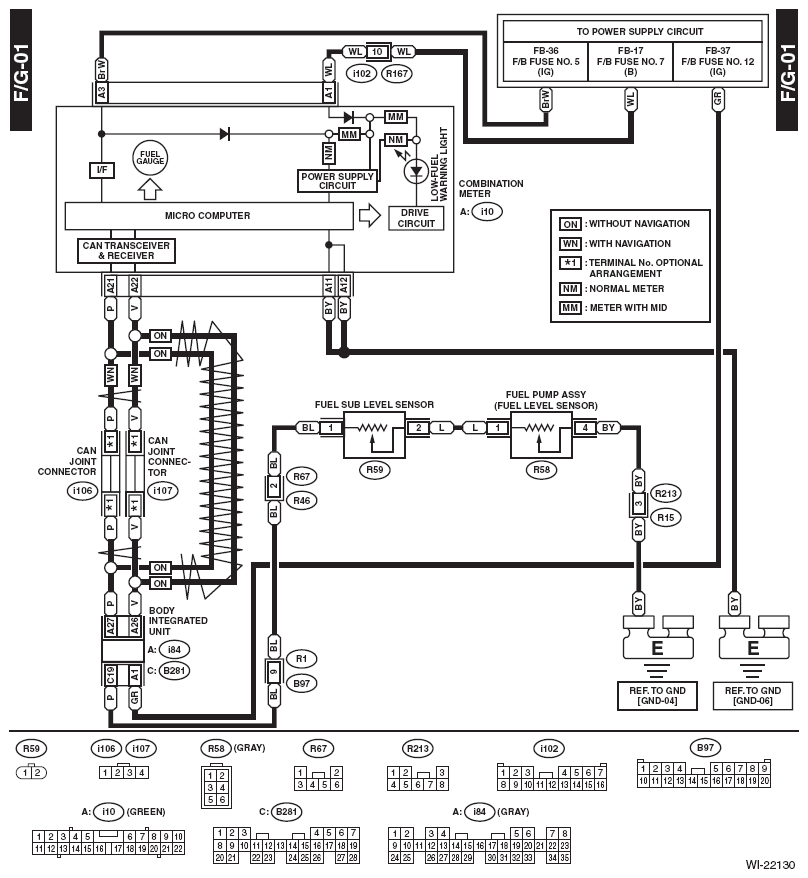

Home >> Subaru >> 2009 >> Outback i, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams & Fuse/Relay Locations >> Fuel Gauge System >> Wiring Diagram
