Rear Brake Hose

  1. Remove the union bolt from the rear brake caliper.

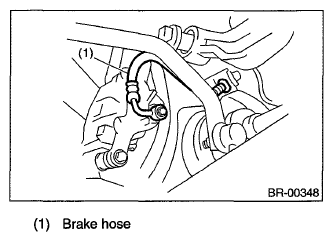

    Fig 1: Identifying Rear Brake Hose
    G06339458Courtesy of SUBARU OF AMERICA, INC.
  2. Separate the brake pipe from brake hose using a flare nut wrench.
  3. Remove the clamp, and then remove the brake hose.

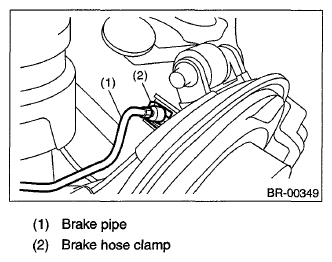

    Fig 2: Identifying Clamp And Brake Hose (1 Of 2)
    G06339459Courtesy of SUBARU OF AMERICA, INC.

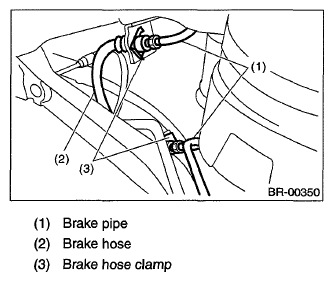

    Fig 3: Identifying Clamp And Brake Hose (2 Of 2)
    G06339460Courtesy of SUBARU OF AMERICA, INC.
