Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Oil Temperature Sensor For ECM >> Locations

Oil Temperature Sensor For ECM: Locations

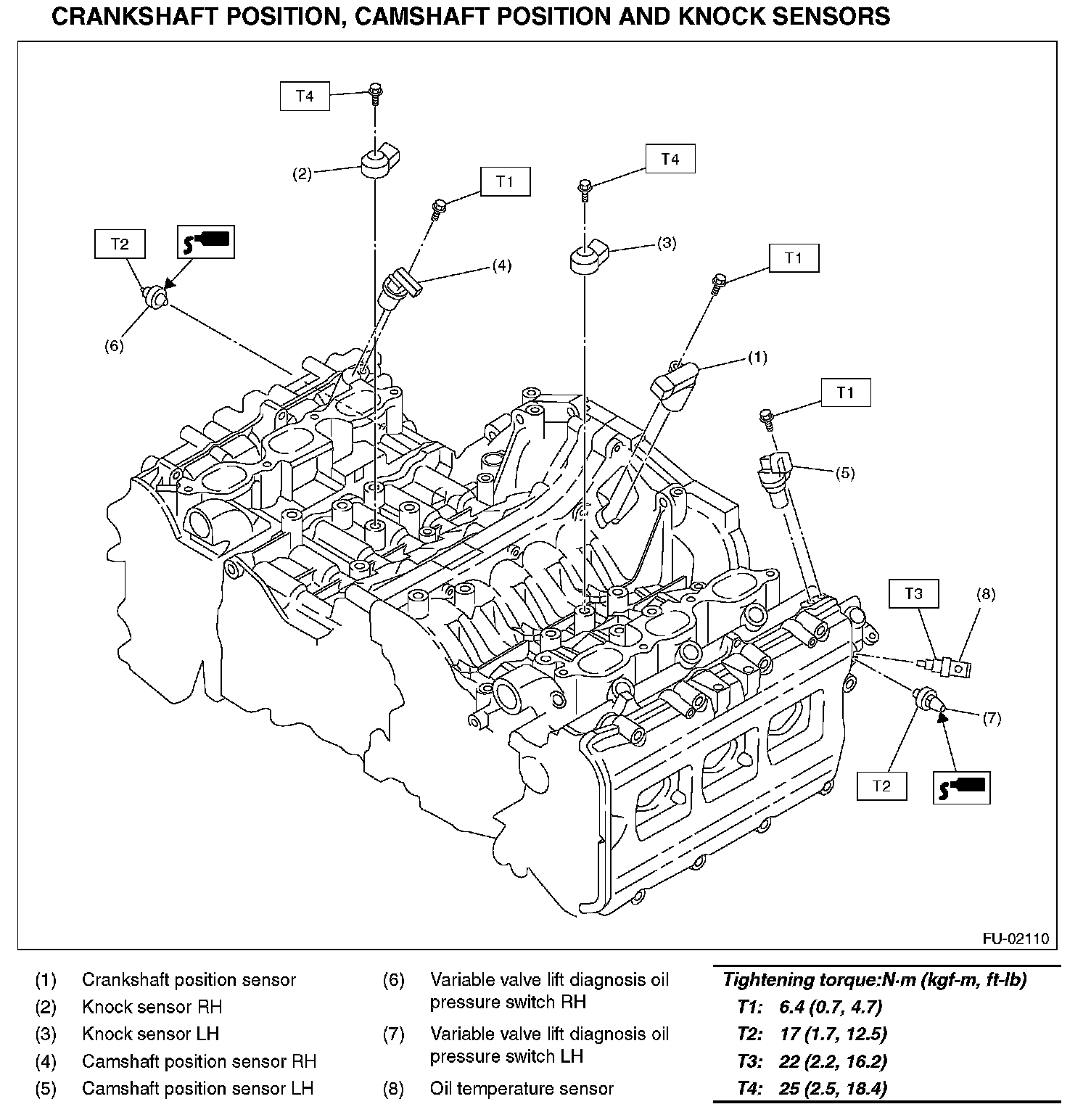

Crankshaft Position, Camshaft Position And Knock Sensors:

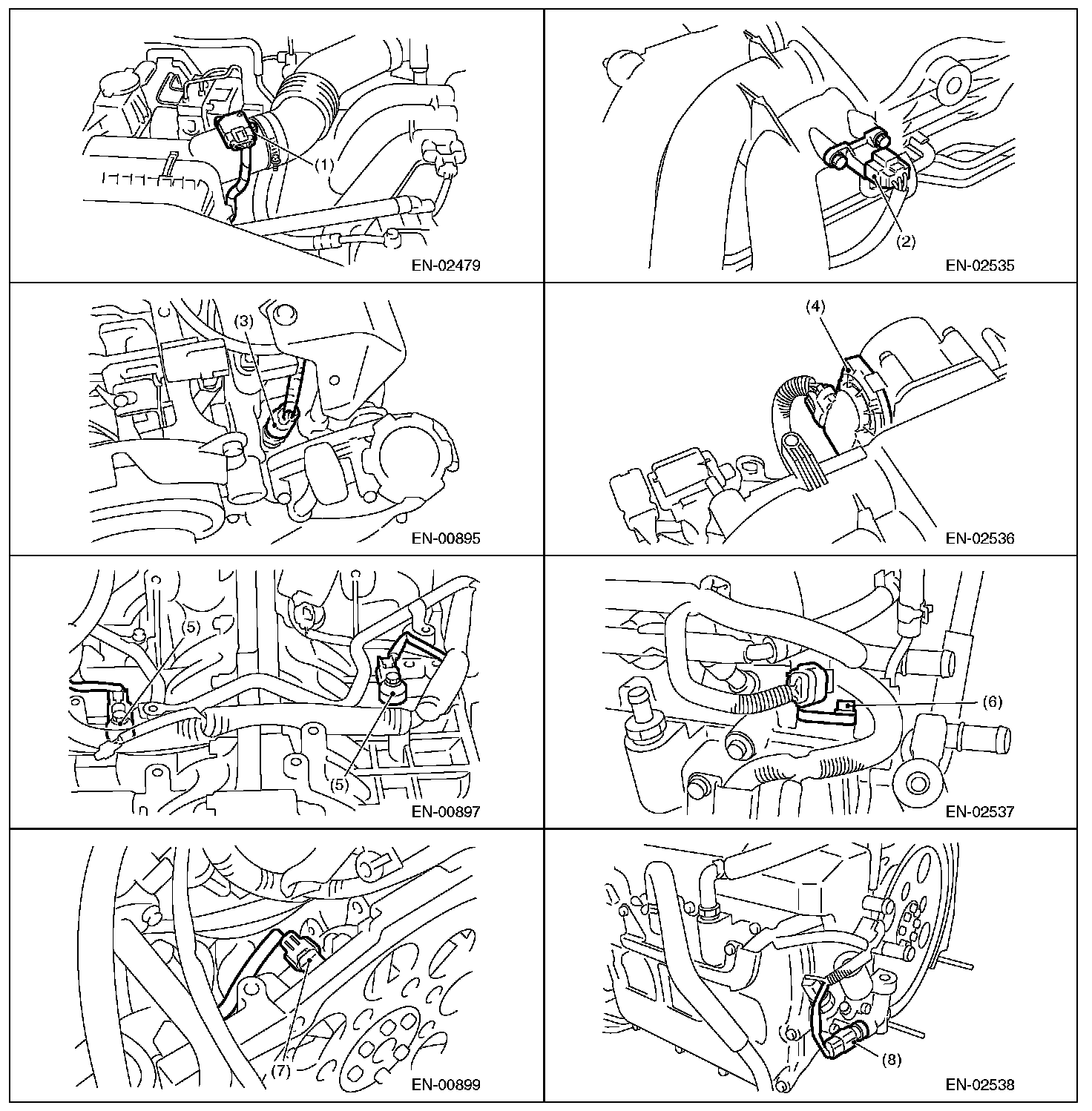

Sensor (Part 1):



Sensor (Part 2):
