Seat Belt Buckle Switch: Locations

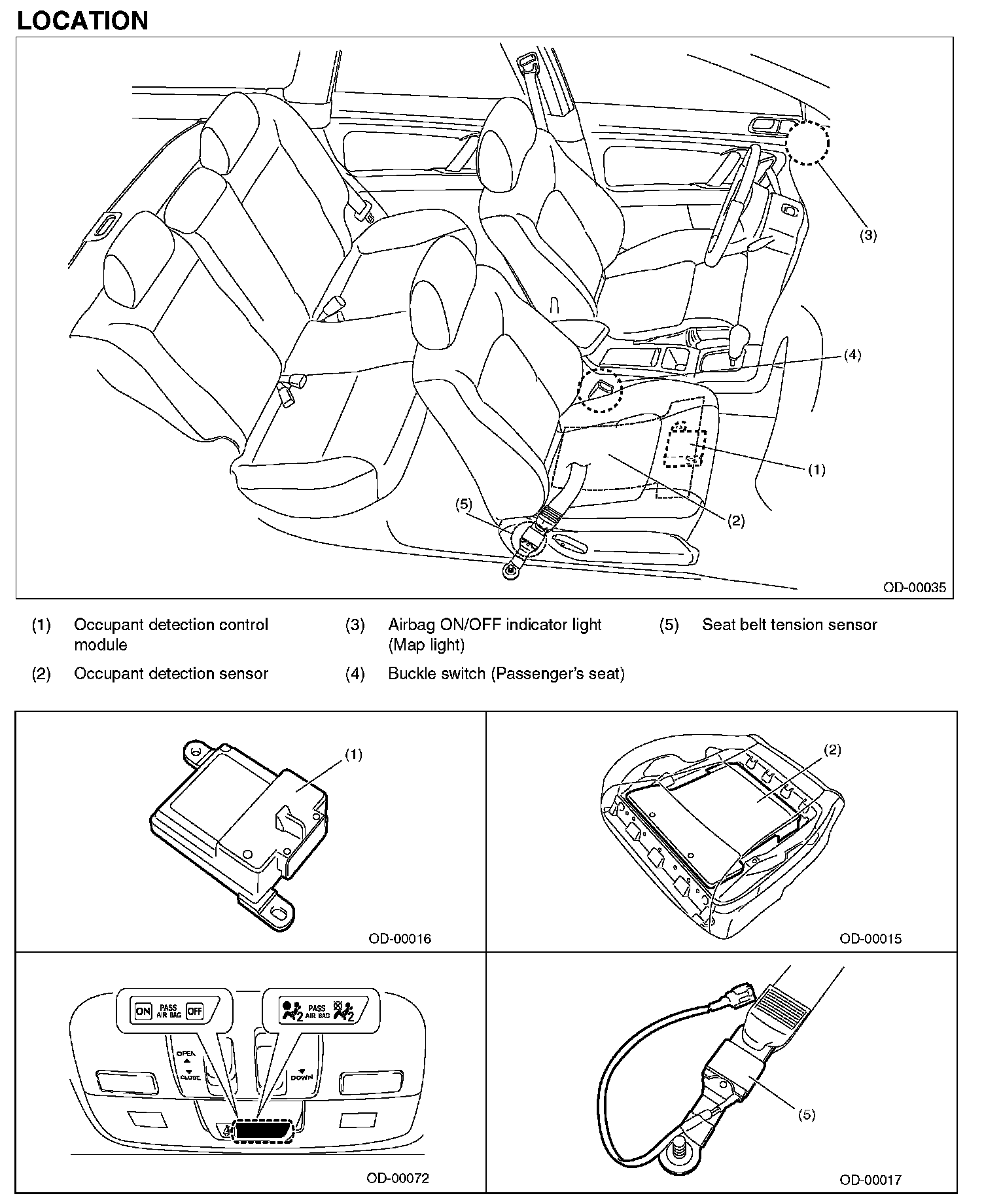

Electrical Component Location (Part 1):

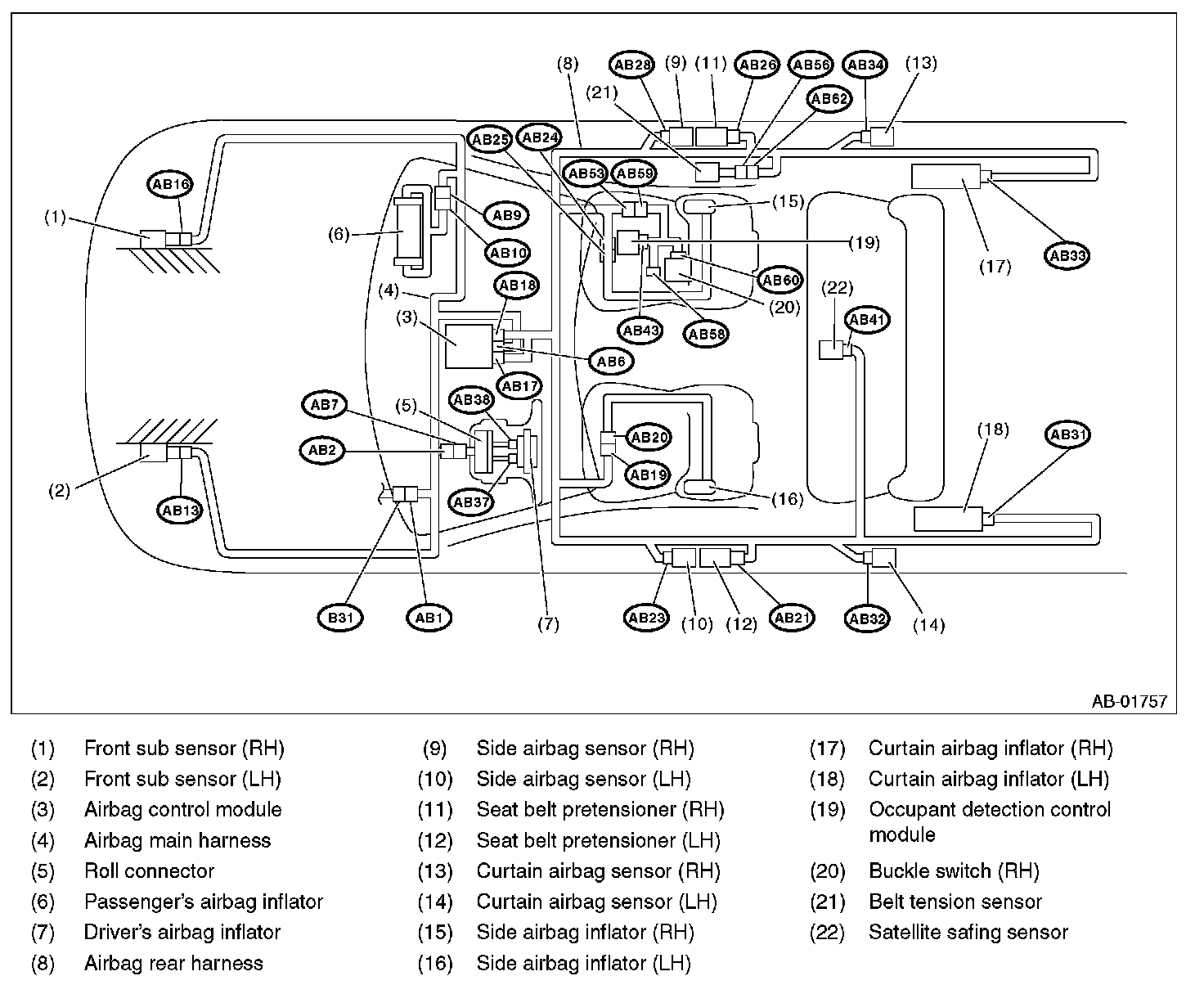

Electrical Component Location (Part 2):

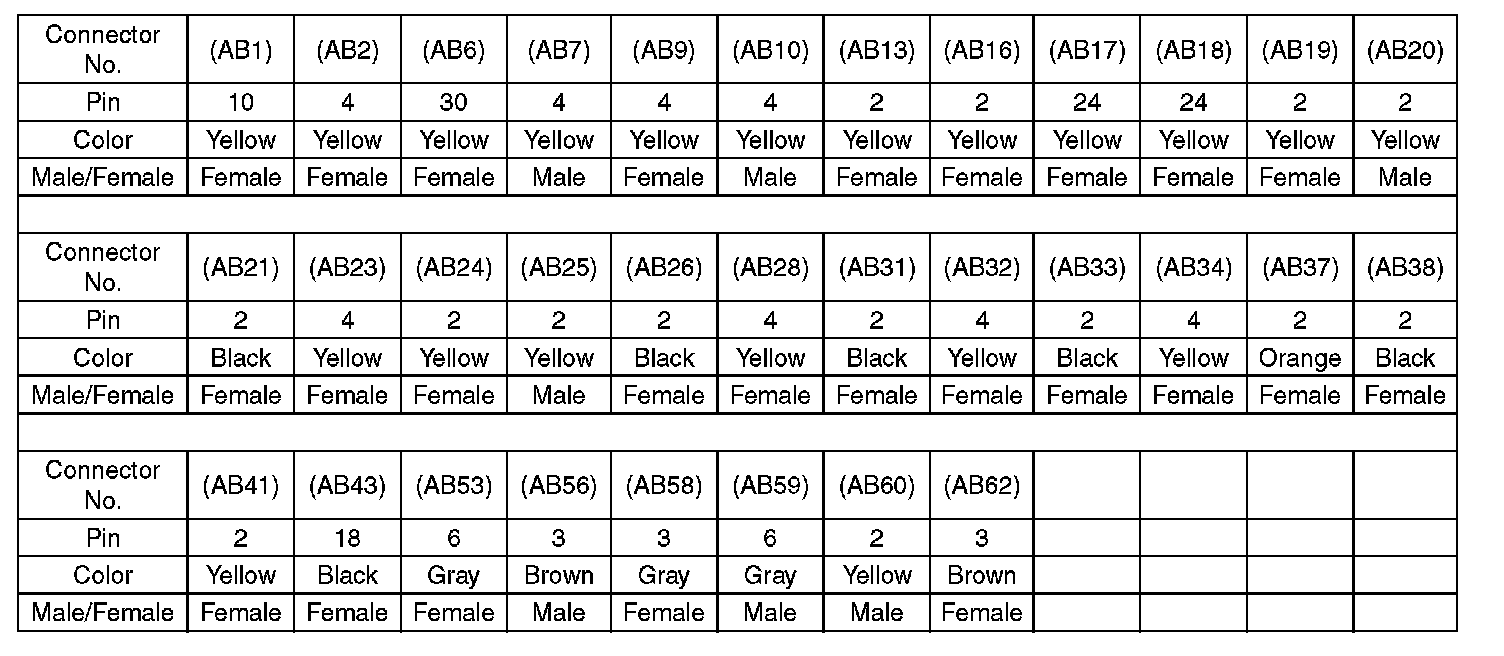

Electrical Location Component:
