Overhaul

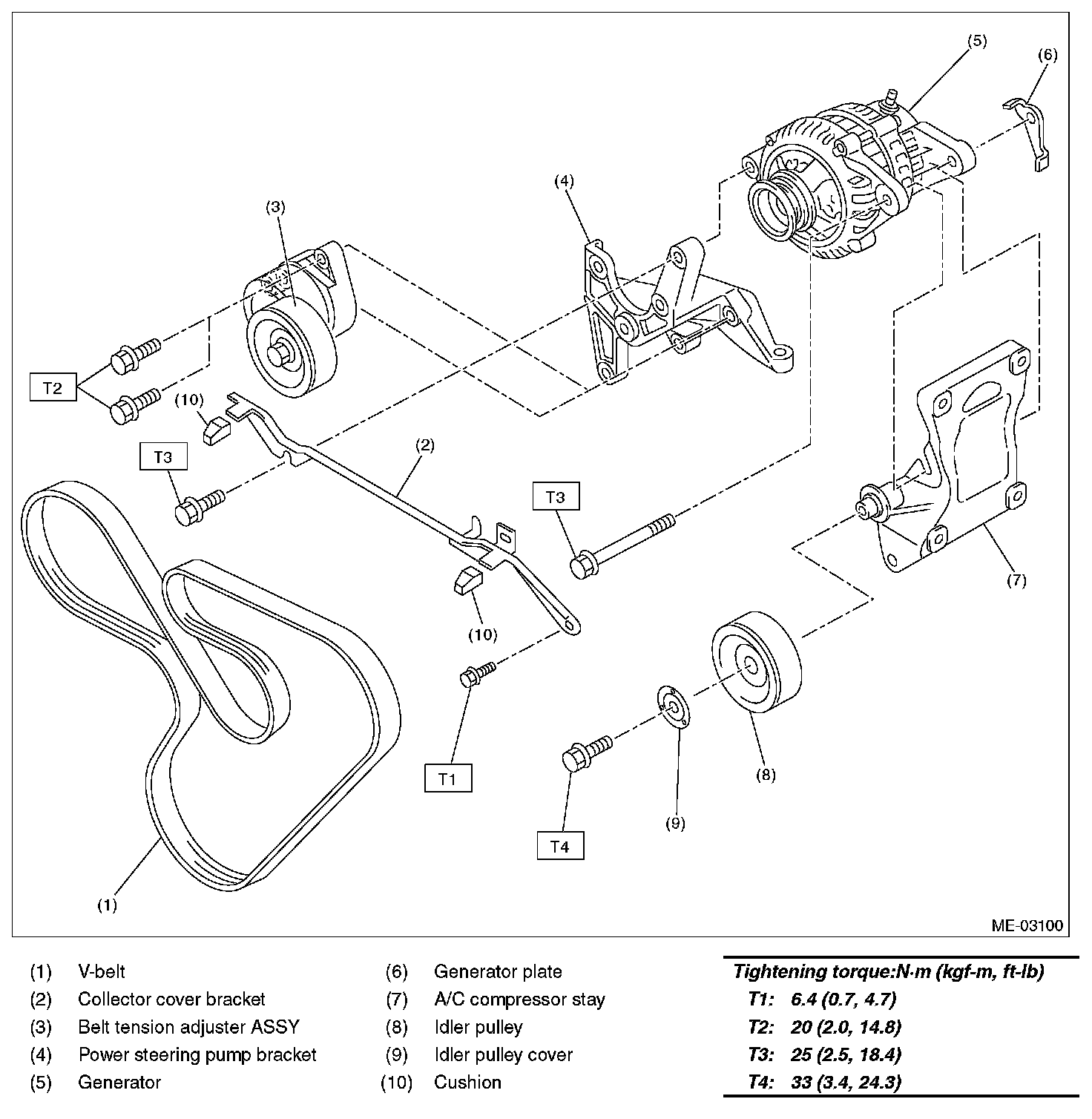

V-belt

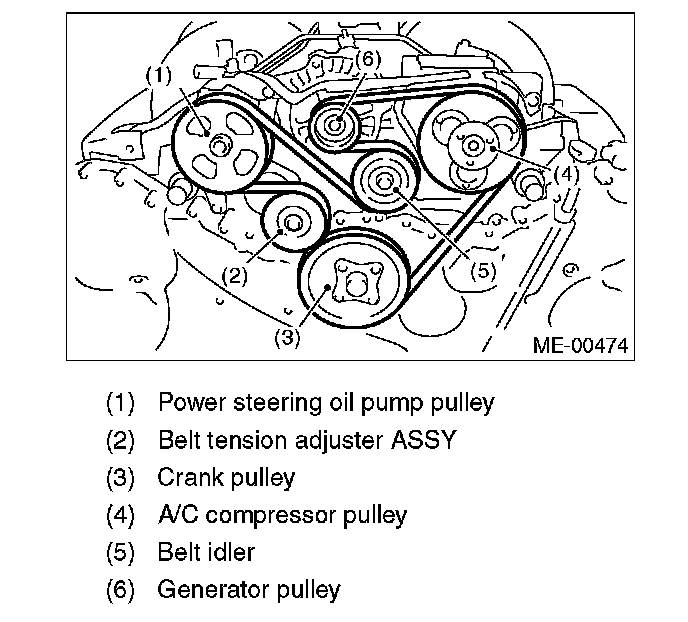

REMOVAL





NOTE: Perform the work with the engine installed to body when replacing a single part.

1. Remove the collector cover.
2. Install the tool to belt tension adjuster assembly installation bolt.
3. Rotate the tool clockwise and loosen the V-belt to remove.





INSTALLATION
Install in the reverse order of removal.





INSPECTION
1. Replace the V-belt, if cracks, fraying or wear is found.

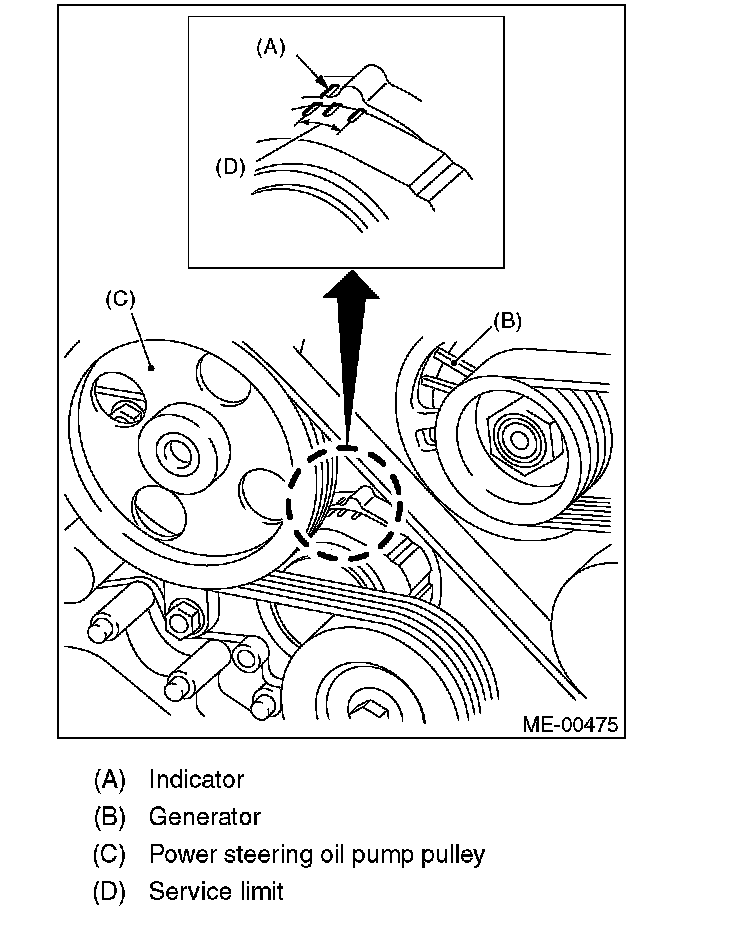

2. Make sure that the V-belt automatic belt tension indicator (A) is within the range (D).
