Vacuum and Vapor Hose Diagrams
>>
Evaporative Emissions System
Evaporative Emissions System

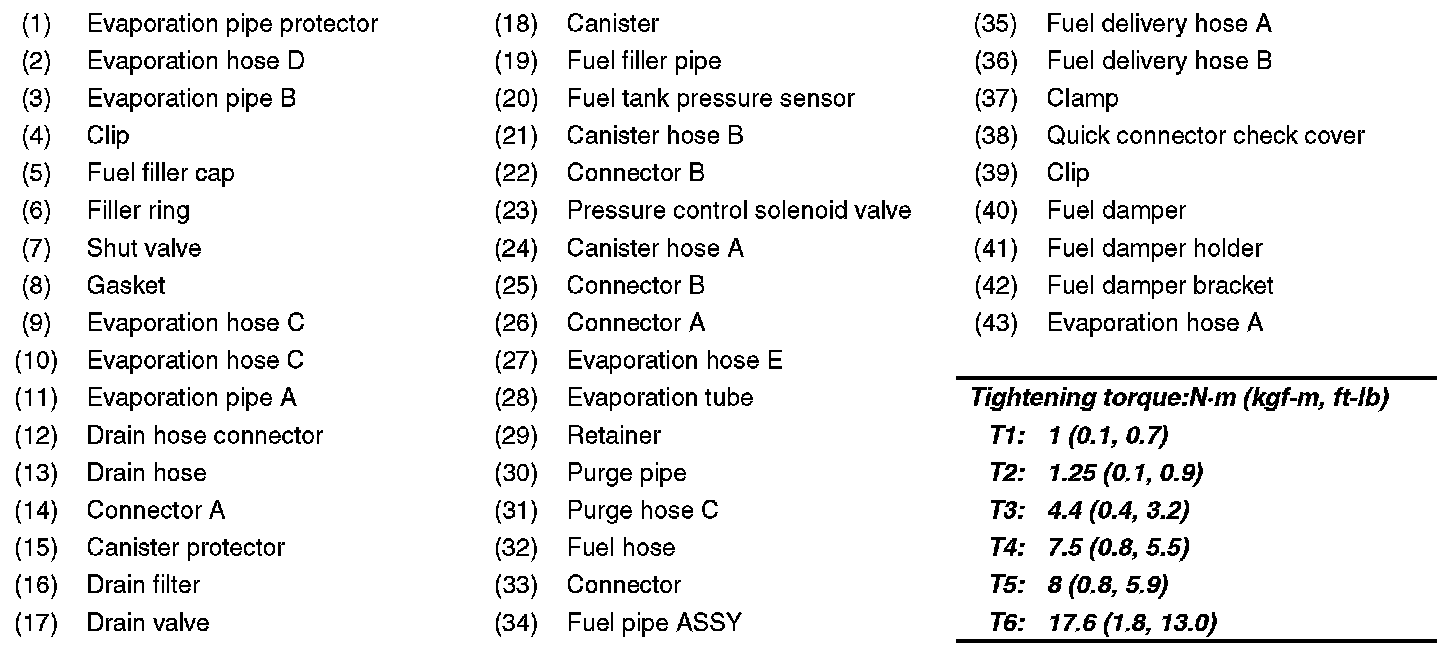

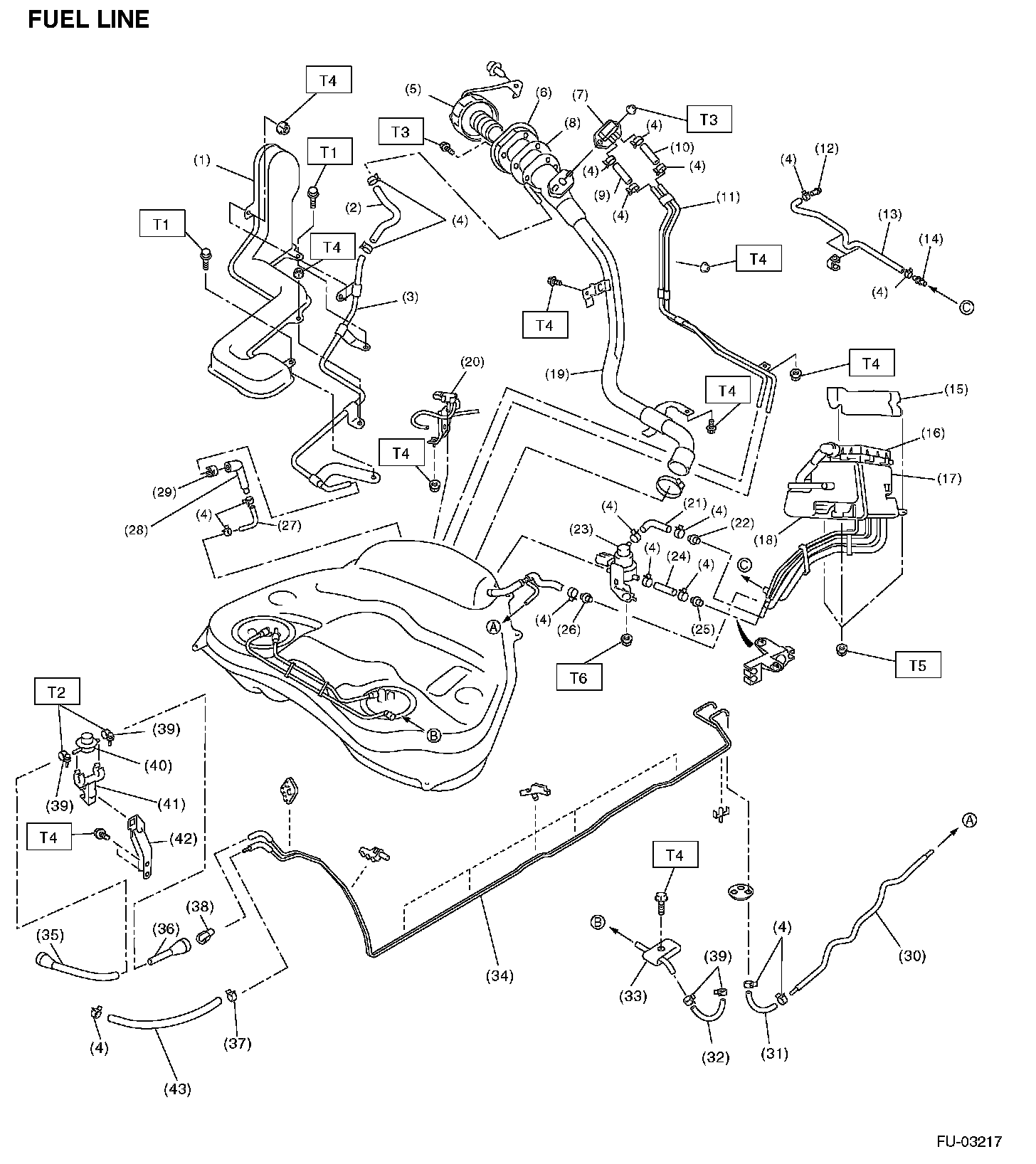

Fuel Line (Part 1):
Fuel Line (Part 2):
