Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> C/C(T6)-01

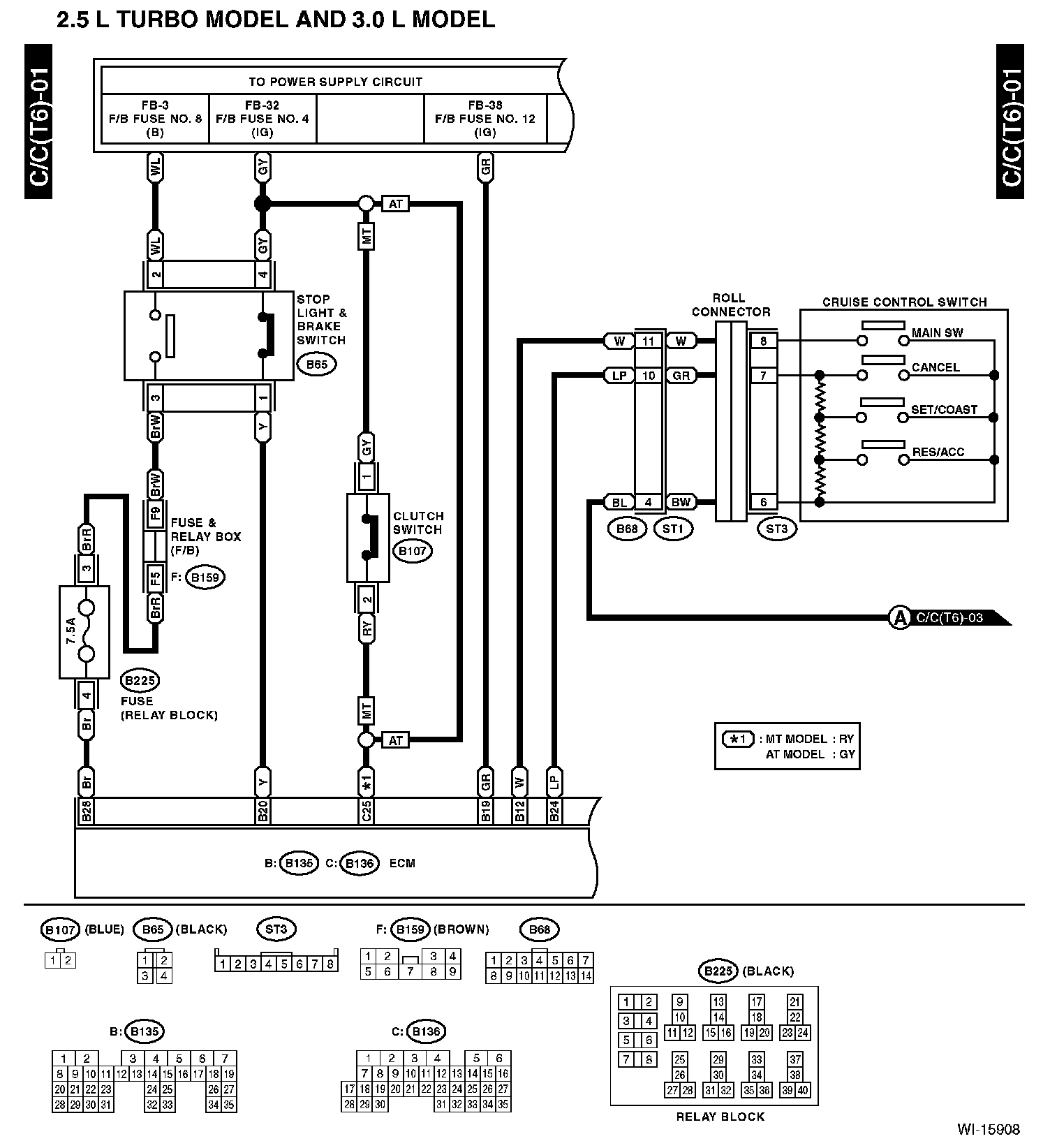

C/C(T6)-01

C/C(T6)-01:
